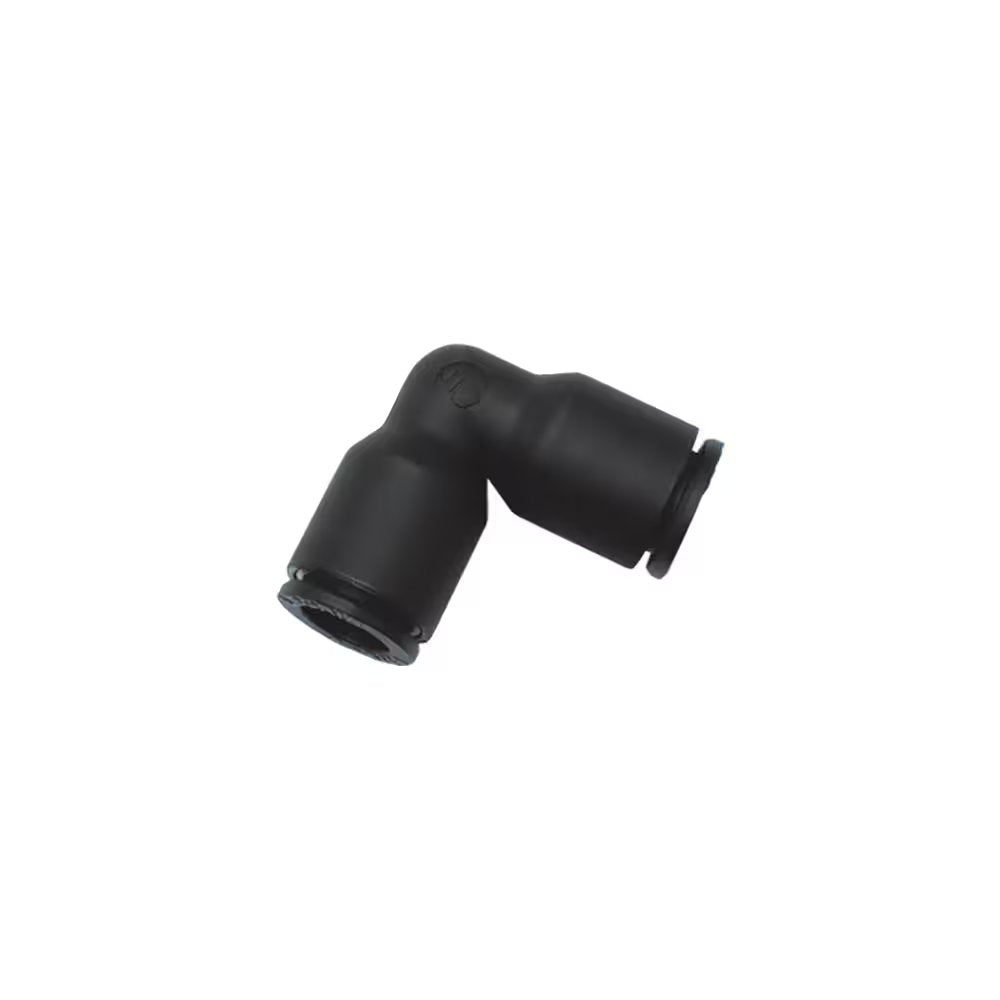

3102 08 00 by Parker | Legris Push-In Fitting | 8 mm Push-to-Connect x 8 mm Push-to-Connect | 29.5 mm Length | 90° Elbow | Polymer | Pack of 10
| Quantity | Price Each |
| 50–99 | $57.09 |
| 100+ | $50.74 |
Discounts applied at checkout.
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3102 Equal and Unequal Elbow
Package Quantity: 10 Units
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | G | L | Kg |
| 3102 04 00 | 4 mm | 4 mm | 8.5 mm | 19 mm | .001 |
| 3102 04 06 | 4 mm | 6 mm | 10.5 mm | 22.5 mm | .003 |
| 3102 06 00 | 6 mm | 6 mm | 10.5 mm | 22.5 mm | .002 |
| 3102 06 08 | 6 mm | 8 mm | 13.5 mm | 29.5 mm | .008 |
| 3102 08 00 | 8 mm | 8 mm | 13.5 mm | 29.5 mm | .004 |
| 3102 08 10 | 8 mm | 10 mm | 16 mm | 34.5 mm | .011 |
| 3102 10 00 | 10 mm | 10 mm | 16 mm | 34.5 mm | .006 |
| 3102 10 12 | 10 mm | 12 mm | 19 mm | 40.5 mm | .019 |
| 3102 12 00 | 12 mm | 12 mm | 19 mm | 40.5 mm | .010 |
| 3102 14 00 | 14 mm | 14 mm | 22 mm | 46.5 mm | .015 |
| 3102 16 00 | 16 mm | 16 mm | 27 mm | 52 mm | .043 |
