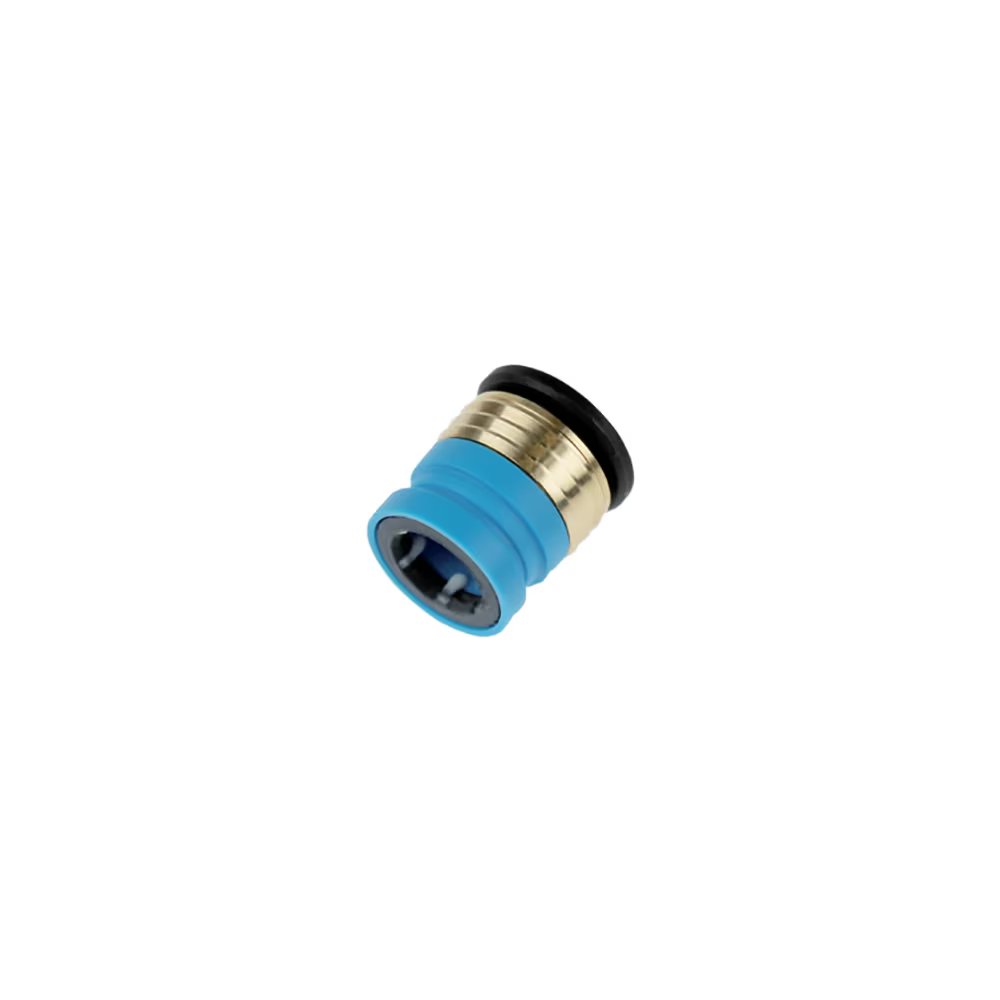

3100 10 00 by Parker | Legris Cartridge | 10 mm Push-to-Connect | 19.5 mm Length | Polymer | Pack of 50
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3100 Carstick® Cartridge
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $163.85 |
| 30–59 | $148.16 |
| 60+ | $130.73 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
Seal Material(s):
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | G | G1 | H | L | Kg |
| 3100 04 00 | 4 mm | 8 mm | 11 mm | 10 mm | 554 mm | .007 Kg |
| 3100 06 00 | 6 mm | 10 mm | 14.5 mm | 11.5 mm | 629 mm | .002 Kg |
| 3100 08 00 | 8 mm | 13 mm | 15 mm | 15 mm | 794 mm | .002 Kg |
| 3100 10 00 | 10 mm | 15.5 mm | 19.5 mm | 17 mm | 930 mm | .005 Kg |
| 3100 12 00 | 12 mm | 19.5 mm | 21 mm | 19.5 mm | 1038 mm | .010 Kg |
| 3100 14 00 | 14 mm | 21 mm | 24.5 mm | 22.5 mm | 1110 mm | .013 Kg |
50 cartridges per Carstick®.
Cavity dimensions are available upon request
