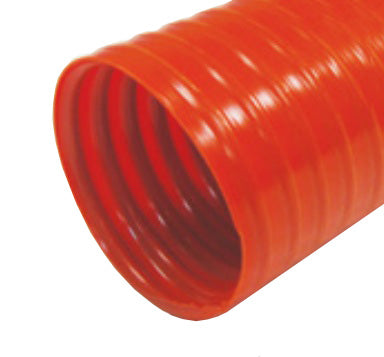

3099-04-3058 by Jason Industrial | 3099 Series | Banding Sleeve | 4" Hose ID | Use on Hose Series: 3058 | Orange | PVC | 3ft Length
Buy more, save moreDiscounts applied in cart/checkout.
Hose Accessories
Jason Industrial | 3099 Series
Banding Sleeve
1
What is this product used for?
- Banding sleeves are made to thread over the outside of Jason thermoplastic petroleum hoses to allow better coupling securing surface on the O.D. of the hose.
2
What are the key specifications?
Tube
PVC
Cover
PVC
Reinforcement
None
Colors
Green, yellow or orange
3
What are the main product features?
- Color-coded to fit specific Jason petroleum hoses.
- Clockwise threading.
- All sleeve lengths are 3 ft.
- Cut to 12" sleeves for each end of the assembly.
4
Which sizes or configurations are available?
| Part Number | Fits Hose ID |
Use on Hose Series |
Sleeve Color |
Length | |
|---|---|---|---|---|---|
| in | mm | ||||
| 3099-03-3040 | 3" | 76.2mm | 3040 | Green | 3ft |
| 3099-04-3040 | 4" | 101.6mm | 3040 | Green | 3ft |
| 3099-03-3045 | 3" | 76.2mm | 3045 | Green | 3ft |
| 3099-04-3045 | 4" | 101.6mm | 3045 | Green | 3ft |
| 3099-02-3050 | 2" | 50.8mm | 3050 | Yellow | 3ft |
| 3099-03-3050 | 3" | 76.2mm | 3050 | Yellow | 3ft |
| 3099-04-3050 | 4" | 101.6mm | 3050 | Yellow | 3ft |
| 3099-03-3053 | 3" | 76.2mm | 3053 | Yellow | 3ft |
| 3099-04-3053 | 4" | 101.6mm | 3053 | Yellow | 3ft |
| 3099-02-3058 | 2" | 50.8mm | 3058 | Orange | 3ft |
| 3099-03-3058 | 3" | 76.2mm | 3058 | Orange | 3ft |
| 3099-04-3058 | 4" | 101.6mm | 3058 | Orange | 3ft |
No by the foot sales. This is a Packaged Length product.
Additional Product Data:
Series:
Internal Diameter:
Tubing Construction:
Material(s):
