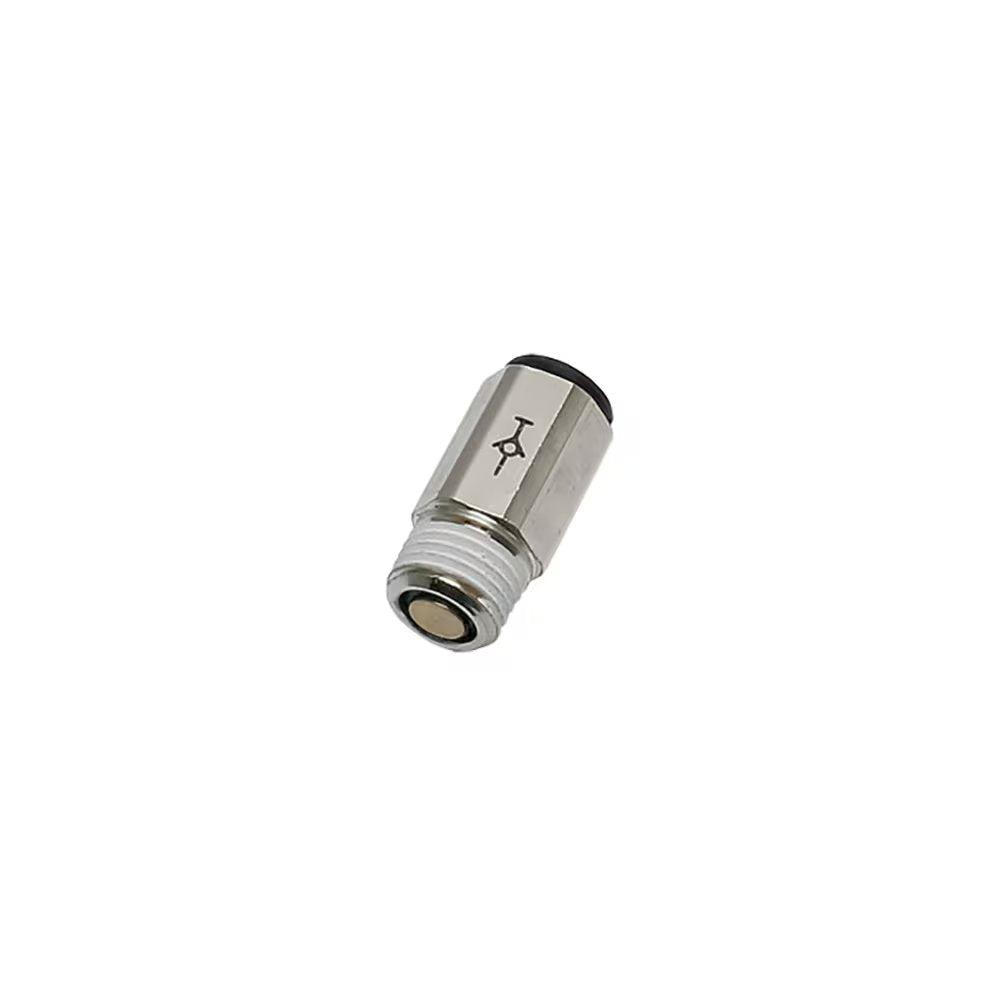

3091 08 10 by Parker | Legris Self-Sealing Stud Fitting | 8 mm Tube Size x 1/8" Male BSPT Thread | Straight | Nickel-Plated Brass | Pack of 10

3091 08 10 by Parker | Legris Self-Sealing Stud Fitting | 8 mm Tube Size x 1/8" Male BSPT Thread | Straight | Nickel-Plated Brass | Pack of 10

Sale price$164.18

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3091 Self-Sealing Stud Fitting, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $154.33
20–59 $139.55
60+ $123.14
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3091 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/8in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting)
  • Working Temperature: -20°C to +80°C
Advantages:
  • Self-Sealing Fittings
  • Prevents fluid flow when there is no tube connected
  • Prevents incorrect assembly
  • Oscillating Fittings
  • Fitting swivels when cylinder is in movement : no bending of the tube
  • High durability fitting/tube assembly
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: Self-sealing fitting: nickel-plated brass
    Oscillating fitting: Technical Polymer
  • Adaptor: Nickel-Plated Brass
  • Anti-friction bearings
  • LF 3000® Components
Part Number ØD C E F H H1 ØT Kg
3091 04 10 4 mm 1/8" 7.5 mm 12 mm 18 mm 9.5 mm 5 mm .014 Kg
3091 06 10 6 mm 1/8" 7.5 mm 13 mm 19.5 mm 9.5 mm 7.5 mm .015 Kg
3091 08 10 8 mm 1/8" 6.5 mm 14 mm 25 mm 10.5 mm 7.5 mm .024 Kg
3091 08 13 8 mm 1/4" 11 mm 14 mm 25.5 mm 13.5 mm 9 mm .021 Kg
