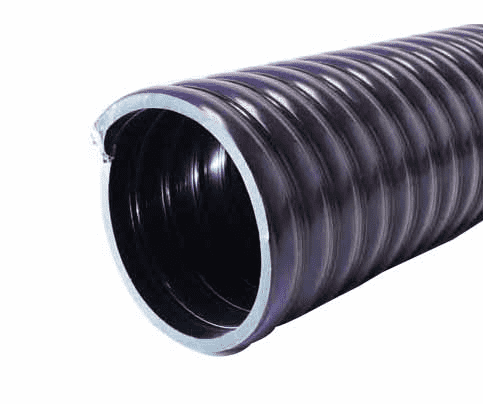

3087-0200-100 by Jason Industrial | 3087 Series | Safety Oilfield Clean-up & Recovery Hose | S-omega | 50 PSI | 2" ID | 2.43" OD | Black | NBR/PVC | 100ft
Jason Industrial Inc. Hose - Material Handling Hose - 3087 Safety Oilfield Clean-up & Recovery Hose - SΩ - Black
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $754.15 |
| 15–29 | $681.95 |
| 30+ | $641.83 |
Discounts applied in cart/checkout.
SPECIFICATIONS
| Application: | Great for the recovery of waste crude oil, diesel fuel and salt water. Used for cleaning up tank bottoms and oil spills | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | NBR/PVC |
| Reinforcement: | Clockwise PVC helix, SΩ Ground Wire | Cover: | N/A |
| Temperature Range: | -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | N/A |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 3087-0200-100 | 2" | 50.80mm | 2.43" | 61.72mm | PVC Helix | 50 PSI | 3.45 BAR | 29.0 inHg | 0.67 lb./ft. | 1.00 KG/m | 4.00" | 101.60mm | 100ft |
| 3087-0300-100 | 3" | 76.20mm | 3.52" | 89.41mm | PVC Helix | 45 PSI | 3.10 BAR | 29.0 inHg | 1.10 lb./ft. | 1.64 KG/m | 6.00" | 152.40mm | 100ft |
| 3087-0400-100 | 4" | 101.60mm | 4.60" | 116.84mm | PVC Helix | 38 PSI | 2.62 BAR | 29.0 inHg | 1.84 lb./ft. | 2.74 KG/m | 8.20" | 208.30mm | 100ft |
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
50
Tubing Construction:
Special Properties:
