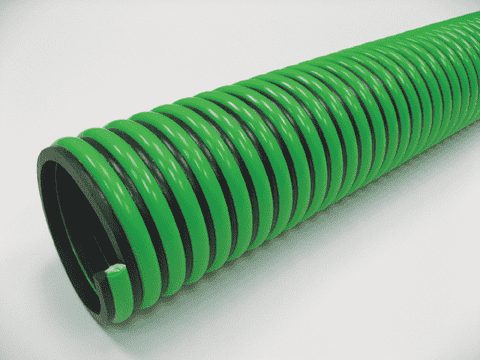

3080-0300-100 by Jason Industrial | 3080 Series | Suction Hose | 45 PSI | 3" ID | 3.52" OD | Green/Black | EPDM | 100ft
Jason Industrial Inc. Hose - Water Hose - 3080 EPDM Suction Hose - Green/Black
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $924.00 |
| 8–14 | $884.68 |
| 15+ | $786.38 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
45
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Application: | Septic, Waste Water and Liquid Manure Handling, Agricultural Liquid Fertilizers, Standard Duty Water Suction, Suction and Transfer for Rental, Construction and Trash Pumps | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | EPDM |
| Reinforcement: | Polyethylene, Clockwise Helix | Cover: | N/A |
| Temperature Range: | -40 deg F (-40 deg. C) to +140 deg. F (+60 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | N/A |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Braids | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 3080-0150-100 | 1-1/2" | 38.10mm | 1.85" | 46.99mm | PE Helix | 50 PSI | 3.45 BAR | 29.0 inHg | 0.41 lb./ft. | 0.61 KG/m | 3.80" | 96.50mm | 100ft |
| 3080-0200-100 | 2" | 50.80mm | 2.43" | 61.72mm | PE Helix | 50 PSI | 3.45 BAR | 29.0 inHg | 0.67 lb./ft. | 1.00 KG/m | 5.50" | 139.70mm | 100ft |
| 3080-0300-100 | 3" | 76.20mm | 3.52" | 89.41mm | PE Helix | 45 PSI | 3.10 BAR | 29.0 inHg | 1.10 lb./ft. | 1.64 KG/m | 7.50" | 190.50mm | 100ft |
| 3080-0400-100 | 4" | 101.60mm | 4.60" | 116.84mm | PE Helix | 38 PSI | 2.62 BAR | 29.0 inHg | 1.84 lb./ft. | 2.74 KG/m | 11.50" | 292.10mm | 100ft |
