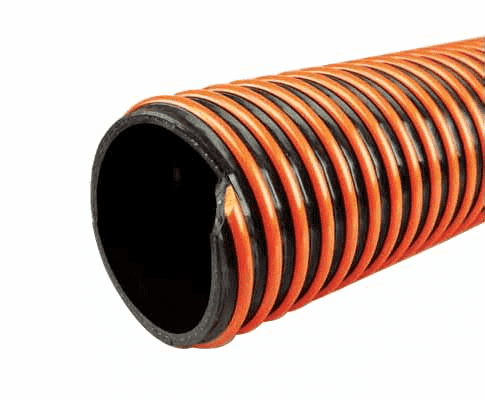

3058-0300-100 by Jason Industrial | 3058 Series | Drop Hose for Suction & Delivery of Gasoline | S-omega | 65 PSI | 3" ID | 3.68" OD | Orange/Black | NBR/PVC | 100ft

3058-0300-100 by Jason Industrial | 3058 Series | Drop Hose for Suction & Delivery of Gasoline | S-omega | 65 PSI | 3" ID | 3.68" OD | Orange/Black | NBR/PVC | 100ft

Sale price$2,373.39

Jason Industrial Inc. Hose - Material Handling Hose - 3058 NBR/PVC Drop Hose For Suction and Delivery of Gasoline - SΩ - Orange/Black

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $2,230.99
8–14 $2,136.05
15+ $1,898.71
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3058 Series
Color(s):
  • Orange
Internal Diameter:
  • 3in

SPECIFICATIONS

Application: Used to deliver gasoline, diesel fuel, kerosene and fuels with aromatic content to 40%. SAE Rating: N/A
Other Ratings: N/A Tube: NBR/PVC Tube, Smooth Bore, Embedded SΩ Ground Wire in the Hose Wall
Reinforcement: Clockwise PVC Helix, One Braid of High Tensile Polyester Yarn Cover: N/A
Temperature Range: -10 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Higher transfer pressures
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. Wire must be secured to ground to dissipate static electricity.
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3058-0200-100 2" 50.80mm 2.68" 68.07mm 1 70 PSI 4.83 BAR 29.9 inHg 1.13 lb./ft. 1.68 KG/m 5.00" 127.00mm 100ft
3058-0300-100 3" 76.20mm 3.68" 93.47mm 1 65 PSI 4.48 BAR 29.9 inHg 1.37 lb./ft. 2.04 KG/m 6.00" 152.40mm 100ft
3058-0400-100 4" 101.60mm 4.80" 121.92mm 1 65 PSI 4.48 BAR 29.9 inHg 2.16 lb./ft. 3.21 KG/m 8.00" 203.20mm 100ft
Note: Use JASON ORANGE banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
