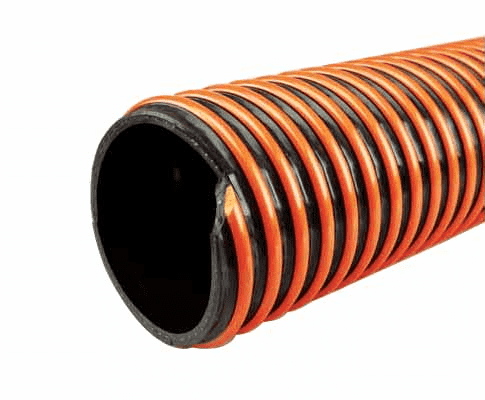

3058-0200-100 by Jason Industrial | 3058 Series | Drop Hose for Suction & Delivery of Gasoline | S-omega | 70 PSI | 2" ID | 2.68" OD | Orange/Black | NBR/PVC | 100ft

3058-0200-100 by Jason Industrial | 3058 Series | Drop Hose for Suction & Delivery of Gasoline | S-omega | 70 PSI | 2" ID | 2.68" OD | Orange/Black | NBR/PVC | 100ft

Sale price$1,858.70

Jason Industrial Inc. Hose - Material Handling Hose - 3058 NBR/PVC Drop Hose For Suction and Delivery of Gasoline - SΩ - Orange/Black

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,747.18
8–14 $1,672.83
15+ $1,486.96
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: Used to deliver gasoline, diesel fuel, kerosene and fuels with aromatic content to 40%. SAE Rating: N/A
Other Ratings: N/A Tube: NBR/PVC Tube, Smooth Bore, Embedded SΩ Ground Wire in the Hose Wall
Reinforcement: Clockwise PVC Helix, One Braid of High Tensile Polyester Yarn Cover: N/A
Temperature Range: -10 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Higher transfer pressures
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. Wire must be secured to ground to dissipate static electricity.
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3058-0200-100 2" 50.80mm 2.68" 68.07mm 1 70 PSI 4.83 BAR 29.9 inHg 1.13 lb./ft. 1.68 KG/m 5.00" 127.00mm 100ft
3058-0300-100 3" 76.20mm 3.68" 93.47mm 1 65 PSI 4.48 BAR 29.9 inHg 1.37 lb./ft. 2.04 KG/m 6.00" 152.40mm 100ft
3058-0400-100 4" 101.60mm 4.80" 121.92mm 1 65 PSI 4.48 BAR 29.9 inHg 2.16 lb./ft. 3.21 KG/m 8.00" 203.20mm 100ft
Note: Use JASON ORANGE banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 3058 Series
Color(s):
  • Orange
Internal Diameter:
  • 2in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
