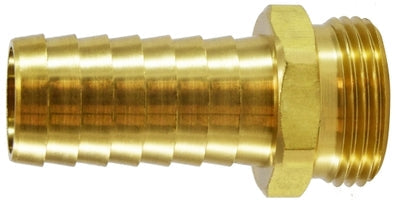

30573 (30-573) by Midland | Garden Hose Fitting | Male NPSM Long Shank | 1" Hose Barb x 1" Male NPSM Thread | Straight | Brass

30573 (30-573) by Midland | Garden Hose Fitting | Male NPSM Long Shank | 1" Hose Barb x 1" Male NPSM Thread | Straight | Brass

Sale price$15.76

Midland Industries
Brass Fitting - Garden Hose Fitting - Male NPSM Long Shank
Buy More, Save More!
Quantity Price Each
10–39 $14.81
40–79 $13.40
80+ $11.82
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • 1in Male NPSM
Material(s):
  • Brass
Temperature and Working Pressure Ranges:
  • From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
  • Note: All female connector ends should have a rubber washer inserted prior to usage.
  • Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.
Part Number Hose ID Male NPSM Thread A B Hex
30571
(30-571)		 5/8" 3/4" 2.18" 1.50" 1.06
30572
(30-572)		 3/4" 3/4" 2.18" 1.50" 1.06
30573
(30-573)		 1" 1" 2.32" 1.53" 1.30

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
