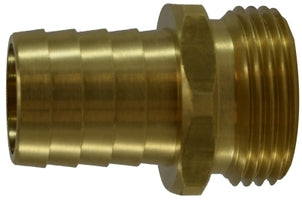

30550 (30-550) by Midland | Garden Hose Fitting | Male NPSM Short Shank | 1/2" Hose Barb x 3/4" Male NPSM | Straight | Brass

30550 (30-550) by Midland | Garden Hose Fitting | Male NPSM Short Shank | 1/2" Hose Barb x 3/4" Male NPSM | Straight | Brass

Minimum Order Quantity: 5 Units

Sale price$5.68

Midland Industries
Brass Fitting - Garden Hose Fitting - NPSM Male Short Shank
Buy More, Save More!
Quantity Price Each
20–39 $5.34
40–79 $4.83
80+ $4.26
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 3/4in Male NPSM
Material(s):
  • Brass
Temperature and Working Pressure Ranges:
  • From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
  • Note: All female connector ends should have a rubber washer inserted prior to usage.
  • Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.
Part Number Hose ID NPSM Thread A B Hex
30550
(30-550)		 1/2" 3/4" 1.56" 0.88" 1.06
30551
(30-551)		 5/8" 3/4" 1.56" 0.88" 1.06
30552
(30-552)		 3/4" 3/4" 1.56" 0.88" 1.06
30553
(30-553)		 1" 1" 1.77" 0.98" 1.30

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
