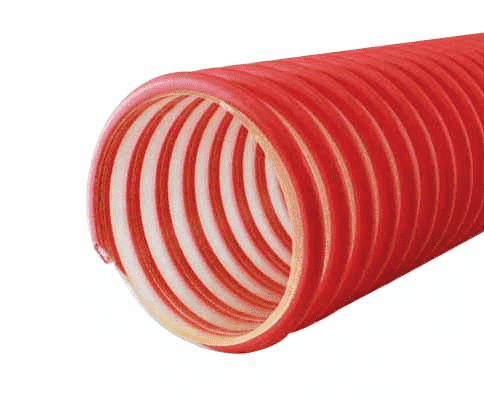

3053-0400-100 by Jason Industrial | 3053 Series | HD Gasoline & Alternative Fuel Vapor Recovery Hose | S-omega | 7 PSI | 4" ID | 4.61" OD | Red/Clear | Polyurethane | 100ft

3053-0400-100 by Jason Industrial | 3053 Series | HD Gasoline & Alternative Fuel Vapor Recovery Hose | S-omega | 7 PSI | 4" ID | 4.61" OD | Red/Clear | Polyurethane | 100ft

Sale price$2,227.15

Jason Industrial Inc. Hose - Material Handling Hose - 3053 HD Polyurethane Gasoline and Alternative Fuel Vapor Recovery Hose - SΩ - Red/Clear

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $2,093.52
8–14 $2,004.44
15+ $1,781.72
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3053 Series
Color(s):
  • Red & Clear/Semi-Clear
Internal Diameter:
  • 4in

SPECIFICATIONS

Application: Used to remove vapors from gasoline and alternative fuels to recovery system in tank truck and terminal operations SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Embedded SΩ Ground Wire, Clockwise PVC helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3053-0300-100 3" 76.20mm 3.57" 90.68mm PVC Helix 8 PSI 0.55 BAR 15.0 inHg 0.95 lb./ft. 1.41 KG/m 5.00" 127.00mm 100ft
3053-0400-100 4" 101.60mm 4.61" 117.09mm PVC Helix 7 PSI 0.48 BAR 12.0 inHg 1.27 lb./ft. 1.89 KG/m 6.00" 152.40mm 100ft
Note: Use JASON YELLOW banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
