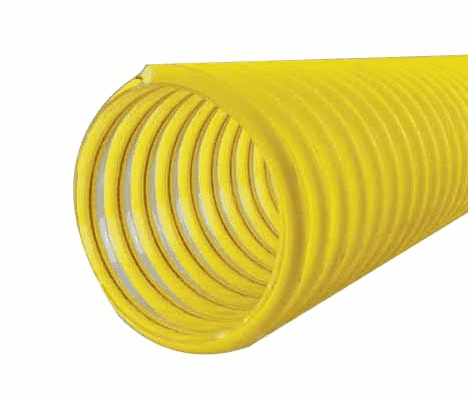

3050-0300-100 by Jason Industrial | 3050 Series | Gasoline & Alternative Fuel Vapor Recovery Hose | S-omega | 8 PSI | 3" ID | 3.54" OD | Yellow/Clear | Polyurethane | 100ft

3050-0300-100 by Jason Industrial | 3050 Series | Gasoline & Alternative Fuel Vapor Recovery Hose | S-omega | 8 PSI | 3" ID | 3.54" OD | Yellow/Clear | Polyurethane | 100ft

Sale price$1,406.94

Jason Industrial Inc. Hose - Material Handling Hose - 3050 Polyurethane Gasoline & Alternative Fuel Vapor Recovery Hose - SΩ - Yellow/Clear

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,322.52
8–14 $1,266.25
15+ $1,125.55
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: Used to remove vapors from gasoline and alternative fuels to recovery system in tank truck operations SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Embedded SΩ Ground Wire, Clockwise PVC helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3050-0200-100 2" 50.80mm 2.45" 62.23mm PVC Helix 10 PSI 0.69 BAR 15.0 inHg 0.50 lb./ft. 0.74 KG/m 3.00" 76.20mm 100ft
3050-0300-100 3" 76.20mm 3.54" 89.92mm PVC Helix 8 PSI 0.55 BAR 15.0 inHg 0.79 lb./ft. 1.18 KG/m 4.00" 101.60mm 100ft
3050-0400-100 4" 101.60mm 4.57" 116.08mm PVC Helix 7 PSI 0.48 BAR 12.0 inHg 1.11 lb./ft. 1.65 KG/m 5.00" 127.00mm 100ft
Note: Use JASON GREEN banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 3050 Series
Color(s):
  • Yellow & Clear/Semi-Clear
Internal Diameter:
  • 3in
