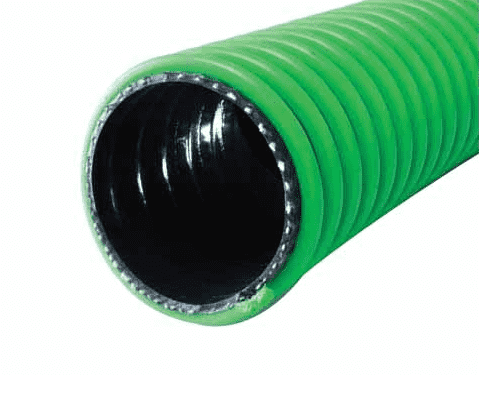

3045-0400-100 by Jason Industrial | 3045 Series | Drop Hose for Suction & Delivery of Gasoline, Alternative Fuels | S-omega | 65 PSI | 4" ID | 4.83" OD | Green/Black | Polyurethane | 100ft
Jason Industrial Inc

3045-0400-100 by Jason Industrial | 3045 Series | Drop Hose for Suction & Delivery of Gasoline, Alternative Fuels | S-omega | 65 PSI | 4" ID | 4.83" OD | Green/Black | Polyurethane | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Used in the delivery of biofuels, gasoline, kerosene and fuel oil SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane, Smooth Bore
Reinforcement: Embedded SΩ Ground Wire, Clockwise PVC helix, Single Braid, High Tensile Polyester Yarn Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Higher transfer pressures
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3045-0300-100 3" 76.20mm 3.78" 96.01mm 1 65 PSI 4.48 BAR 29.0 inHg 1.20 lb./ft. 1.79 KG/m 6.00" 152.40mm 100ft
3045-0400-100 4" 101.60mm 4.83" 122.68mm 1 65 PSI 4.48 BAR 29.0 inHg 1.71 lb./ft. 2.54 KG/m 8.00" 203.20mm 100ft
Note: Use JASON YELLOW banding sleeves only when securing coupling for 2", 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
