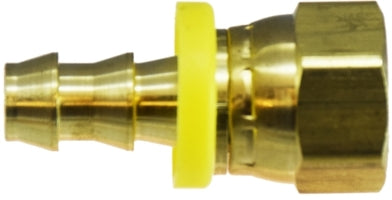

30430 (30-430) by Midland | Push On Hose Barb | Female Ballseat Swivel | 3/8" Hose ID x 1/2" Female NPSM | Straight | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - Female Ballseat Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.03 |
| 40–79 | $12.69 |
| 80+ | $11.20 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | ||||||
|---|---|---|---|---|---|---|
| 29P04 | 129PO8 | 628 | 278 | 29SPO | 731 | NPSM |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose ID x Female NPSM | A | B | Hex | Approx. Weight (Lbs.) |
| 30340 (30-340) |
1/4" x 1/8" | 1.39" | 0.85" | 0.50" | 0.06 |
| 30341 (30-341) |
1/4" x 1/4" | 1.47" | 0.82" | 0.68" | 0.06 |
| 30342 (30-342) |
1/4" x 3/8" | 1.40" | 0.77" | 0.68" | 0.09 |
| 30343 (30-343) |
3/8" x 1/4" | 1.61" | 0.97" | 0.68" | 0.08 |
| 30344 (30-344) |
3/8" x 3/8" | 1.75" | 0.95" | 0.81" | 0.10 |
| 30430 (30-430) |
3/8" x 1/2" | 1.79" | 0.97" | 0.93" | 0.11 |
| 30346 (30-346) |
1/2" x 1/2" | 1.88" | 1.09" | 0.93" | 0.12 |
| 30345 (30-345) |
1/2" x 3/4" | 2.36" | 1.02" | 1.18" | 0.18 |
| 30349 (30-349) |
3/4" x 3/4" | 2.36" | 1.55" | 1.18" | 0.22 |
