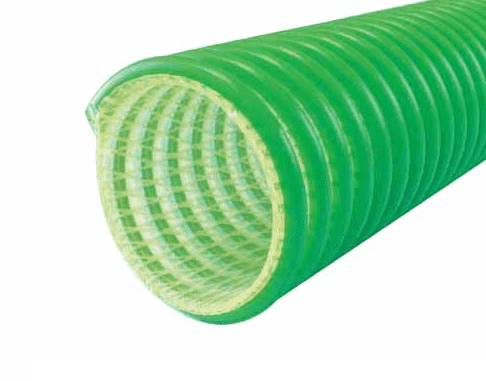

3040-0200-100 by Jason Industrial | 3040 Series | Drop Hose for Suction & Delivery Of Gasoline, Alternative Fuels | S-omega | 75 PSI | 2" ID | 2.46" OD | Green/Clear | Polyurethane | 100ft

3040-0200-100 by Jason Industrial | 3040 Series | Drop Hose for Suction & Delivery Of Gasoline, Alternative Fuels | S-omega | 75 PSI | 2" ID | 2.46" OD | Green/Clear | Polyurethane | 100ft

Sale price$1,665.61

Jason Industrial Inc. Hose - Material Handling Hose - 3040 Polyurethane Drop Hose for Suction and Delivery Of Gasoline & Alternative Fuels - SΩ - Green/Clear

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,565.67
8–14 $1,499.05
15+ $1,332.49
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3040 Series
Color(s):
  • Green
Internal Diameter:
  • 2in

SPECIFICATIONS

Application: Used in the delivery of biofuels, gasoline, kerosene and fuel oil SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane, Smooth Bore
Reinforcement: Embedded SΩ Ground Wire, Clockwise PVC helix, Single Braid, High Tensile Polyester Yarn Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Higher transfer pressures
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3040-0200-100 2" 50.80mm 2.46" 62.48mm 1 75 PSI 5.17 BAR 29.0 inHg 0.63 lb./ft. 0.94 KG/m 4.00" 101.60mm 100ft
3040-0300-100 3" 76.20mm 3.78" 96.01mm 1 65 PSI 4.48 BAR 29.0 inHg 1.20 lb./ft. 1.79 KG/m 6.00" 152.40mm 100ft
3040-0400-100 4" 101.60mm 4.83" 122.68mm 1 65 PSI 4.48 BAR 29.0 inHg 1.71 lb./ft. 2.54 KG/m 8.00" 203.20mm 100ft
Note: Use JASON GREEN banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
