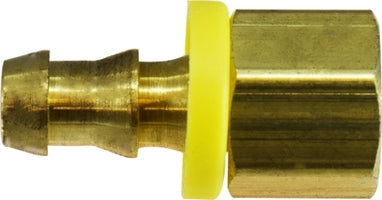

30384 by Midland | Push On Hose Barb Fitting | 1/4" Hose ID x 3/8" Female NPTF | Rigid Adapter | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - Rigid Female Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.35 |
| 40–79 | $9.36 |
| 80+ | $8.26 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | ||||||||
|---|---|---|---|---|---|---|---|---|
| 29P02 | 129PO7 | 30282 | 29FPO | HLF | 626 | 274 | 726 | 940 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose ID x Female NPTF | A | B | Hex | Approx. Weight (Lbs.) |
| 30220 (30-220) |
1/4" x 1/8" | 1.35" | 0.87" | 0.50" | 0.02 |
| 30221 (30-221) |
1/4" x 1/4" | 1.51" | 0.87" | 0.62" | 0.06 |
| 30384 (30-384) |
1/4" x 3/8" | 1.51" | 0.77" | 0.75" | 0.06 |
| 30391 (30-391) |
5/16" x 1/8" | 1.32" | 0.77" | 0.50" | 0.03 |
| 30222 (30-222) |
5/16" x 1/4" | 1.51" | 0.87" | 0.62" | 0.06 |
| 30393 (30-393) |
3/8" x 1/8" | 1.47" | 0.92" | 0.56" | 0.06 |
| 30224 (30-224) |
3/8" x 1/4" | 1.61" | 0.97" | 0.62" | 0.06 |
| 30225 (30-225) |
3/8" x 3/8" | 1.63" | 0.97" | 0.75" | 0.06 |
| 30394 (30-394) |
3/8" x 1/2" | 1.66" | 0.92" | 0.93" | 0.12 |
| 30397 (30-397) |
3/8" x 3/4" | 1.97" | 0.97" | 1.18" | 0.20 |
| 30223 (30-223) |
1/2" x 1/4" | 1.76" | 1.02" | 0.68" | 0.08 |
| 30226 (30-226) |
1/2" x 3/8" | 1.63" | 0.97" | 0.75" | 0.08 |
| 30227 (30-227) |
1/2" x 1/2" | 1.77" | 0.97" | 0.93" | 0.14 |
| 30396 (30-396) |
1/2" x 3/4" | 2.07" | 1.02" | 1.18" | 0.20 |
| 30398 (30-398) |
5/8" x 3/8" | 2.24" | 1.55" | 0.75" | 0.10 |
| 30229 (30-229) |
5/8" x 1/2" | 2.24" | 1.48" | 0.93" | 0.11 |
| 30403 | 5/8" x 3/4" | 2.26" | 1.44" | 1.19" | 0.20 |
| 30399 (30-399) |
3/4" x 1/2" | 2.24" | 1.50" | 0.93" | 0.14 |
| 30395 (30-395) |
3/4" x 3/4" | 2.55" | 1.50" | 1.18" | 0.24 |
| 30400 (30-400) |
1" x 3/4" | 2.55" | 1.55" | 1.18" | 0.25 |
| 30402 (30-402) |
1" x 1" | 2.68" | 1.55" | 1.43" | 0.37 |
