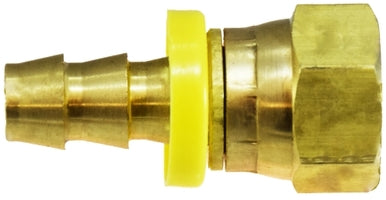

30366 by Midland | Push-On Fitting | Female Gasket Seal Swivel | 3/4" Hose ID x 3/4" Female NPSM | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - Female Gasket Seal Swivel
Not recommend for water due to fiber gasket - for air service only.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $57.02 |
| 40–79 | $51.56 |
| 80+ | $45.50 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: |
|---|
| 129PO9 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose ID x Female NPTF Gasket Swivel | A | B | Hex | Approx. Weight (Lbs.) |
| 30359 (30-359) |
1/4" x 1/8" | 1.39" | 0.77" | 0.50" | 0.03 |
| 30358 (30-358) |
1/4" x 1/4" | 1.47" | 0.82" | 0.68" | 0.06 |
| 30360 (30-360) |
3/8" x 1/4" | 1.61" | 1.00" | 0.68" | 0.06 |
| 30361 (30-361) |
3/8" x 3/8" | 1.77" | 0.97" | 0.81" | 0.08 |
| 30362 (30-362) |
3/8" x 1/2" | 1.80" | 0.92" | 0.93" | 0.09 |
| 30363 (30-363) |
1/2" x 1/2" | 1.09" | 1.02" | 0.93" | 0.11 |
| 30366 (30-366) |
3/4" x 3/4" | 2.36" | 1.55" | 1.18" | 0.32 |
