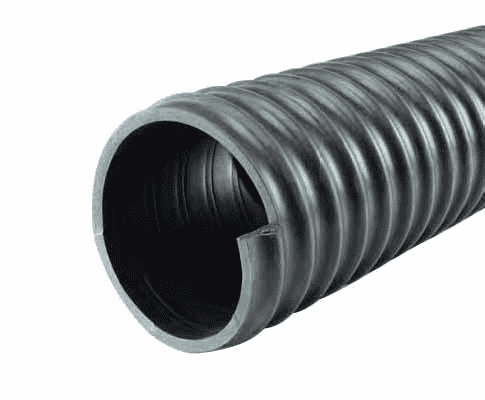

3035-0500-100 by Jason Industrial | 3035 Series | Abrasion Resistant Material Handling Hose | 30 PSI | 5" ID | 5.75" OD | Black | SBR | 100ft
Jason Industrial Inc

3035-0500-100 by Jason Industrial | 3035 Series | Abrasion Resistant Material Handling Hose | 30 PSI | 5" ID | 5.75" OD | Black | SBR | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Abrasive suction for crushed rock, sand, dry fertilizer, small gravel and powdered cement. Can also be used as a boom hose for catch basin clean out SAE Rating: N/A
Other Ratings: N/A Tube: Abrasion Resistant SBR, Static Dissipating
Reinforcement: Clockwise PVC Helix Cover: Abrasion Resistant SBR, Static Dissipating
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Heavy-duty abrasion resistance
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • No ground wire is needed as the tube and cover compound are static dissipating
  • Lightweight
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3035-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 45 PSI 3.10 BAR 29.0 inHg 0.37 lb./ft. 0.55 KG/m 2.00" 50.80mm 100ft
3035-0200-100 2" 50.80mm 2.35" 59.69mm PVC Helix 40 PSI 2.76 BAR 29.0 inHg 0.50 lb./ft. 0.74 KG/m 2.50" 63.50mm 100ft
3035-0250-100 2-1/2" 63.50mm 2.95" 74.93mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 0.88 lb./ft. 1.31 KG/m 2.50" 63.50mm 100ft
3035-0300-100 3" 76.20mm 3.51" 89.15mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 1.10 lb./ft. 1.64 KG/m 3.00" 76.20mm 100ft
3035-0400-100 4" 101.60mm 4.63" 117.60mm PVC Helix 30 PSI 2.07 BAR 29.0 inHg 1.76 lb./ft. 2.62 KG/m 4.50" 114.30mm 100ft
3035-0500-100 5" 127.00mm 5.75" 146.05mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 2.47 lb./ft. 3.68 KG/m 5.00" 127.00mm 100ft
3035-0600-050 6" 152.40mm 6.73" 170.94mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.09 lb./ft. 4.60 KG/m 9.00" 228.60mm 50ft
3035-0600-100 6" 152.40mm 6.73" 170.94mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.09 lb./ft. 4.60 KG/m 9.00" 228.60mm 100ft
3035-0800-050 8" 203.20mm 9.04" 230.00mm PVC Helix 30 PSI 2.07 BAR 27.0 inHg 5.65 lb./ft. 8.40 KG/m 15.00" 381.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
