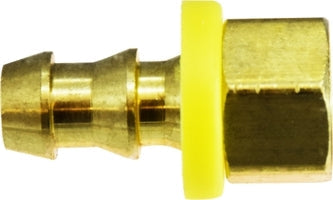

30310 by Midland | Push On Hose Barb | Inverted Flare | 1/4" Hose ID x 3/16" Female Inverted Flare | Adapter | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - Inverted Flare Female Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.25 |
| 40–79 | $9.27 |
| 80+ | $8.18 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 29P013 | 129PO13 | 306 | 100B-A | KA-NG | 292 | P990-J | 736 | 692 | 946 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose ID x Female Inverted Flare | A | B | Hex | Approx. Weight (Lbs.) |
| 30310 (30-310) |
1/4" x 3/16" | 1.12" | 0.84" | 0.50" | 0.02 |
| 30311 (30-311) |
1/4" x 1/4" | 1.14" | 0.84" | 0.56" | 0.02 |
| 30312 (30-312) |
1/4" x 5/16" | 1.18" | 0.82" | 0.62" | 0.02 |
| 30316 (30-316) |
5/16" x 5/16" | 1.25" | 0.81" | 0.62" | 0.04 |
| 30313 (30-313) |
3/8" x 5/16" | 1.32" | 0.87" | 0.62" | 0.04 |
| 30314 (30-314) |
3/8" x 3/8" | 1.35" | 0.95" | 0.75" | 0.06 |
| 30315 (30-315) |
1/2" x 1/2" | 1.73" | 1.04" | 0.87" | 0.12 |
