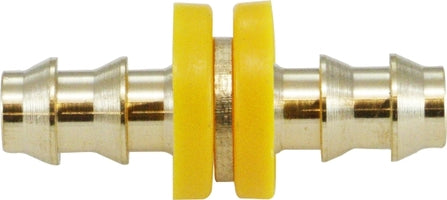

30303 by Midland | Push On Hose Barb Fitting | Hose Splicer | 5/8" Hose ID | Brass

30303 by Midland | Push On Hose Barb Fitting | Hose Splicer | 5/8" Hose ID | Brass

Sale price$9.11

Midland Industries
Brass Fitting - Push On Barb Fitting - Hose Splicer
Buy More, Save More!
Quantity Price Each
10–39 $8.56
40–79 $7.74
80+ $6.83
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5/8in Push-On Hose Barb
  • 5/8in Push-On Hose Barb
  • Some Ends Match
Material(s):
  • Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29P08 129PO14 BPM 696 29SPO 296 915 729 100B-Y KA-RM MHL 296 38282
Part Number Hose ID A Approx. Weight
(Lbs.)
30300
(30-300) 		1/4" 1.87" 0.04
30305
(30-305) 		5/16" 1.80" 0.04
30301
(30-301) 		3/8" 2.00" 0.06
30302
(30-302) 		1/2" 2.01" 0.08
30303
(30-303) 		5/8" 3.03" 0.14
30304
(30-304) 		3/4" 3.03" 0.14
30306
(30-306) 		1" 3.21" 0.28
