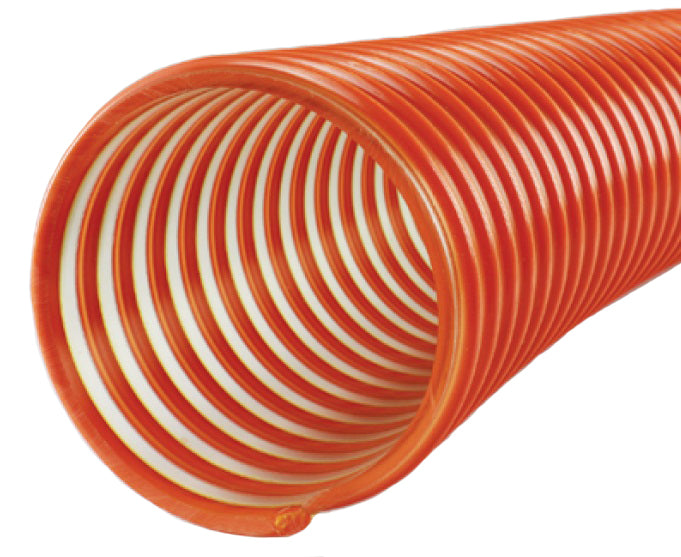

3030-0500-100 by Jason Industrial | 3030 PVC Mulch Resurfacing Hose | Orange/Clear | 30 PSI | 5" ID | 5.60" OD | 100ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Standard duty material handling hose to dispense mulch, bark, wood chips or for resurfacing and landscaping | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Abrasion Resistant PVC |
| Reinforcement: | Clockwise PVC Helix | Cover: | N/A |
| Temperature Range: | -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | N/A |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 3030-0400-100 | 4" | 101.60mm | 4.55" | 115.57mm | PVC Helix | 35 PSI | 2.41 BAR | 29.0 inHg | 1.35 lb./ft. | 2.01 KG/m | 9.00" | 228.60mm | 100ft |
| 3030-0500-100 | 5" | 127.00mm | 5.60" | 142.24mm | PVC Helix | 30 PSI | 2.07 BAR | 24.0 inHg | 1.75 lb./ft. | 2.60 KG/m | 10.00" | 254.00mm | 100ft |
| 3030-0600-100 | 6" | 152.40mm | 6.79" | 172.47mm | PVC Helix | 25 PSI | 1.72 BAR | 24.0 inHg | 2.42 lb./ft. | 3.60 KG/m | 11.00" | 279.40mm | 100ft |
