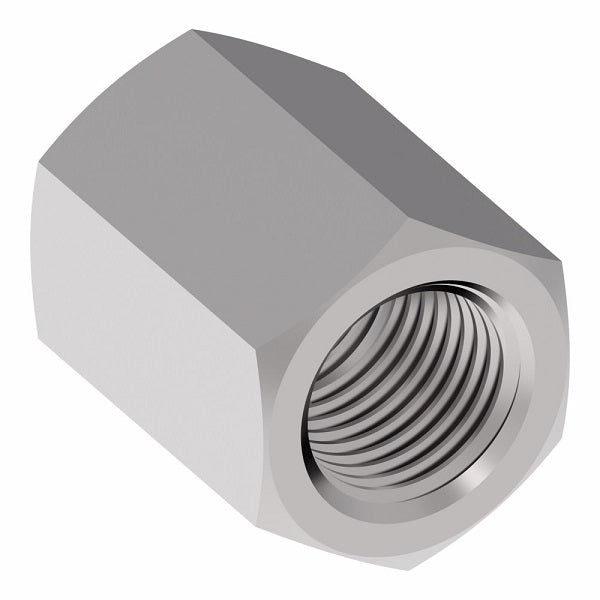

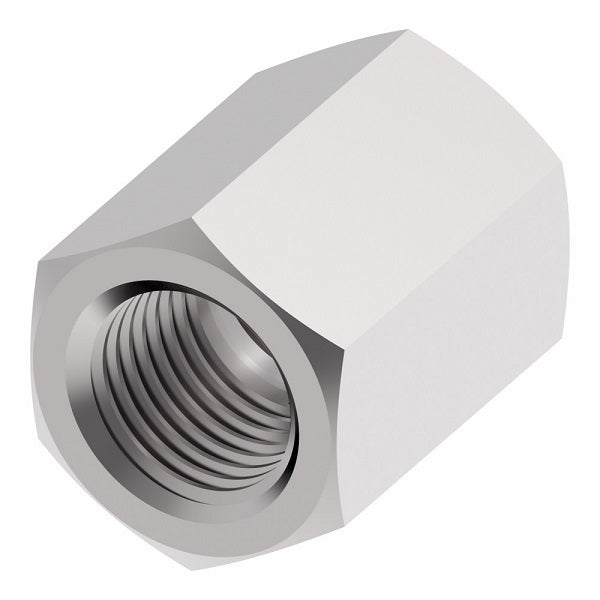

302X6 by Danfoss | Inverted Flare Union Adapter | 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass
302X6 by Danfoss | Inverted Flare Union Adapter | 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass
302X6 by Danfoss | Inverted Flare Union Adapter | 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass

302X6 by Danfoss | Inverted Flare Union Adapter | 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass

Minimum Order Quantity: 5 Units

Sale price$3.69

Aeroquip® by Danfoss
Inverted Flare Union Adapter
Female SAE Inverted Flare x Female SAE Inverted Flare
Straight

In stock
Buy More, Save More!
Quantity Price Each
20–39 $3.47
40–79 $3.14
80+ $2.77
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Female Inverted Flare
  • 3/8in Female Inverted Flare
  • Some Ends Match
Material(s):
  • Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040101
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Brass
Part Number 		Tube O.D. Hex
C		 D L
302X2 1/8" 13/32" 0.078" 0.59"
302X3 3/16" 15/32" 0.125" 0.62"
302X4 1/4" 17/32" 0.188" 0.62"
302X5 5/16" 19/32" 0.219" 0.70"
302X6 3/8" 3/4" 0.281" 0.80"
302X8 1/2" 29/32" 0.406" 0.91"
