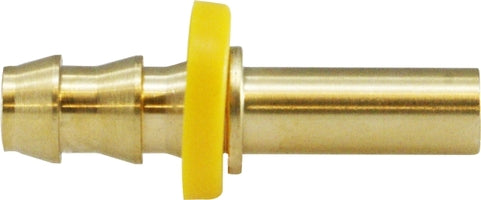

30299 (30-299) by Midland | Push On Hose Barb Fitting | Rigid Tube Adapter | 3/4" Hose ID x 3/4" Tube OD | Straight | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - Rigid Tube Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.06 |
| 40–79 | $12.72 |
| 80+ | $11.22 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | |||||||
|---|---|---|---|---|---|---|---|
| 29PO1D | 129PO15 | 294 | 100B-X | KA-RL | 303 | 732 | 694 |
 |
||||
|---|---|---|---|---|
| Part Number | Hose ID x Tube OD | A | B | Approx. Weight (Lbs.) |
| 30290 (30-290) |
1/4" x 3/16" | 1.68" | 0.77" | 0.04 |
| 30291 (30-291) |
1/4" x 1/4" | 1.88" | 0.77" | 0.04 |
| 30292 (30-292) |
1/4" x 5/16" | 1.88" | 0.77" | 0.04 |
| 30293 (30-293) |
5/16" x 5/16" | 1.91" | 0.79" | 0.04 |
| 30294 (30-294) |
3/8" x 3/8" | 2.03" | 0.92" | 0.06 |
| 30426 (30-426) |
3/8" x 1/2" | 1.81" | 0.97" | 0.04 |
| 30297 (30-297) |
1/2" x 1/2" | 2.13" | 1.02" | 0.06 |
| 30298 (30-298) |
5/8" x 5/8" | 2.61" | 1.50" | 0.10 |
| 30299 (30-299) |
3/4" x 3/4" | 2.61" | 1.50" | 0.25 |
