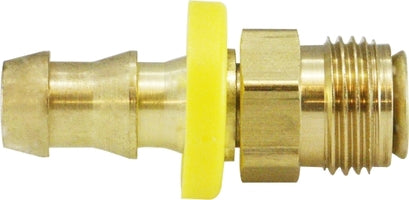

30279 by Midland | Push On Hose Barb | Inverted Flare Swivel | 5/8-18 UNF Thread | 3/8" Hose ID x 3/8" Male Inverted Flare | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Push On Barb Fitting - Inverted Flare Male Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.48 |
| 40–79 | $5.86 |
| 80+ | $5.17 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | ||||||
|---|---|---|---|---|---|---|
| 29P016 | 129PO6 | 290 | 100B-B | KA-MF | 1MS | 947 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose ID x Male Inverted Flare | UNF Thread | A | B | Hex | Approx. Weight (Lbs.) |
| 30275 (30-275) |
1/4" x 3/16" | 3/8-24 | 1.52" | 0.87" | 0.37" | 0.04 |
| 30276 (30-276) |
1/4" x 1/4" | 7/16-24 | 1.56" | 0.87" | 0.43" | 0.04 |
| 30277 (30-277) |
1/4" x 5/16" | 1/2-20 | 1.62" | 0.87" | 0.50" | 0.04 |
| 30280 (30-280) |
5/16" x 5/16" | 1/2-20 | 1.62" | 0.87" | 0.50" | 0.06 |
| 30283 (30-283) |
5/16" x 3/8" | 5/8-18 | 1.63" | 0.87" | 0.62" | 0.06 |
| 30284 (30-284) |
3/8" x 5/16" | 1/2-20 | 1.72" | 0.97" | 0.50" | 0.06 |
| 30279 (30-279) |
3/8" x 3/8" | 5/8-18 | 1.76" | 0.97" | 0.62" | 0.06 |
| 30282 (30-282) |
1/2" x 1/2" | 3/4-18 | 1.84" | 0.97" | 0.75" | 0.10 |
| 30286 (30-286) |
5/8" x 5/8" | 7/8-18 | 2.50" | 1.57" | 0.87" | 0.14 |
