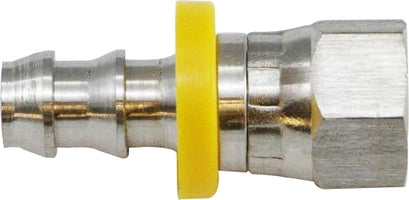

30266SS by Midland | Push On Hose Barb | 37° JIC Flare Swivel | 3/8" Hose ID x 3/8" Female 37° JIC Flare | 316 Stainless Steel

30266SS by Midland | Push On Hose Barb | 37° JIC Flare Swivel | 3/8" Hose ID x 3/8" Female 37° JIC Flare | 316 Stainless Steel

Sale price$48.57

Midland Industries
Brass Fitting - Push On Barb Fitting - Female 37° JIC Flare Swivel

316 Stainless Steel
Buy More, Save More!
Quantity Price Each
10–39 $45.66
40–79 $41.28
80+ $36.43
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Push-On Hose Barb
  • 3/8in Female JIC
Material(s):
  • 316 Stainless Steel

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: N/A


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Part Number Hose ID x Female 37° JIC Flare A B Hex Approx. Weight
(Lbs.)
30266SS
(30-266SS) 		3/8" x 3/8" 1.75" 0.92" 0.68" 0.065
30269SS
(30-269SS) 		3/4" x 3/4" 2.53" 1.50" 1.25" 0.259
