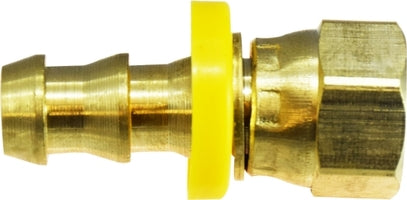

30264 by Midland | Push On Hose Barb | 37° JIC Flare Swivel | 9/16-18 UNF Thread | 1/4" Hose ID x 3/8" Female 37° JIC | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Push On Barb Fitting - Female 37° JIC Flare Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.55 |
| 40–79 | $5.02 |
| 80+ | $4.43 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29P07 | 129PO12 | JF | 944/934 | 29J1CPO | HJF | 688 | 738 | 288 | 100B-6 | 308 | P990-F | 30682 | KA-NJ |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose ID x Female 37° JIC Flare | UNF Thread | A | B | Hex | Approx. Weight (Lbs.) |
| 30265 (30-265) |
1/4" x 1/4" | 7/16-20 | 1.54" | 0.87" | 0.56" | 0.04 |
| 30264 (30-264) |
1/4" x 3/8" | 9/16-18 | 1.57" | 0.87" | 0.68" | 0.06 |
| 30270 (30-270) |
5/16" x 3/8" | 9/16-18 | 1.60" | 0.82" | 0.68" | 0.06 |
| 30266 (30-266) |
3/8" x 3/8" | 9/16-18 | 1.70" | 0.97" | 0.68" | 0.08 |
| 30267 (30-267) |
1/2" x 1/2" | 3/4-16 | 1.78" | 0.97" | 0.87" | 0.10 |
| 30268 (30-268) |
5/8" x 5/8" | 7/8-14 | 2.33" | 1.45" | 1.00" | 0.14 |
| 30269 (30-269) |
3/4" x 3/4" | 1-1/16-12 | 2.40" | 1.45" | 1.25" | 0.22 |
| 30429 (30-429) |
1" x 1" | 1-5/16-12 | 2.60" | 1.45" | 1.50" | 0.39 |
