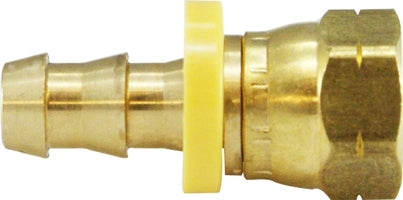

30259 by Midland | Push On Hose Barb | 45° SAE Flare Swivel | 1-1/16-14 UNF Thread | 3/4" Hose ID x 3/4" Female 45° Flare | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - 45° SAE Flare Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.03 |
| 40–79 | $10.88 |
| 80+ | $9.60 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29P06 | 129PO14 | 30882 | 728 | P990-H | 29AEPO | 307 | 284 | 100S-4 | KA-NS | HSF | 684 | 934 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose ID x Female 45° Flare | UNF Thread | A | B | Hex | Approx. Weight (Lbs.) |
| 30250 (30-250) |
1/4" x 1/4" | 7/16-20 | 1.54" | 0.87" | 0.56" | 0.04 |
| 30251 (30-251) |
1/4" x 5/16" | 1/2-20 | 1.57" | 0.87" | 0.62" | 0.04 |
| 30253 (30-253) |
1/4" x 3/8" | 5/8-18 | 1.63" | 0.87" | 0.75" | 0.06 |
| 30254 (30-254) |
5/16" x 5/16" | 1/2-20 | 1.58" | 0.87" | 0.68" | 0.06 |
| 30260 (30-260) |
5/16" x 3/8" | 5/8-18 | 1.63" | 0.87" | 0.75" | 0.08 |
| 30252 (30-252) |
3/8" x 3/8" | 5/8-18 | 1.73" | 0.97" | 0.75" | 0.10 |
| 30257 (30-257) |
3/8" x 1/2" | 3/4-16 | 1.85" | 0.87" | 0.87" | 0.10 |
| 30261 (30-261) |
1/2" x 3/8" | 5/8-18 | 1.92" | 1.05" | 0.75" | 0.10 |
| 30255 (30-255) |
1/2" x 1/2" | 3/4-16 | 1.77" | 0.97" | 0.87" | 0.12 |
| 30258 (30-258) |
5/8" x 5/8" | 7/8-14 | 2.35" | 1.45" | 1.00" | 0.14 |
| 30259 (30-259) |
3/4" x 3/4" | 1-1/16-14 | 2.42" | 1.45" | 1.25" | 0.22 |
