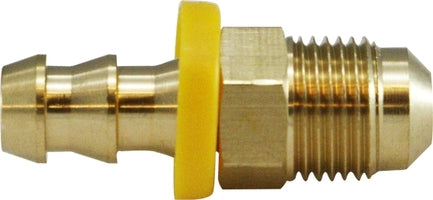

30241 by Midland | Push On Hose Barb Fitting | SAE Flare | 1/2-20 UNF Thread | 1/4" Hose ID x 5/16" 45° Male Flare | Adapter | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Push On Barb Fitting - Male SAE Flare Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.99 |
| 40–79 | $6.32 |
| 80+ | $5.58 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | ||||||||
|---|---|---|---|---|---|---|---|---|
| 29PO3 | 129PO4 | 100B-3 | KA-MS | 727 | 945 | 682 | 302 | 282 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose ID x 45° Male Flare | UNF Thread | A | B | Hex | Approx. Weight (Lbs.) |
| 30240 (30-240) |
1/4" x 1/4" | 7/16-20 | 1.45" | 0.75" | 0.43 | 0.04 |
| 30241 (30-240) |
1/4" x 5/16" | 1/2-20 | 1.59" | 0.84" | 0.50 | 0.04 |
| 30249 (30-249) |
5/16" x 5/16" | 1/2-20 | 1.60" | 0.80" | 0.50 | 0.06 |
| 30271 (30-271) |
3/8" x 5/16" | 1/2-20 | 1.64" | 0.86" | 0.50 | 0.08 |
| 30243 (30-243) |
3/8" x 3/8" | 5/8-18 | 1.83" | 0.92" | 0.62 | 0.08 |
| 30245 (30-245) |
1/2" x 1/2" | 3/4-16 | 1.98" | 1.02" | 0.875 | 0.10 |
| 30246 (30-246) |
5/8" x 5/8" | 7/8-14 | 2.73" | 1.50" | 0.87 | 0.19 |
| 30247 (30-247) |
3/4" x 3/4 | 1-1/16-14 | 2.98" | 1.50" | 1.06 | 0.32 |
