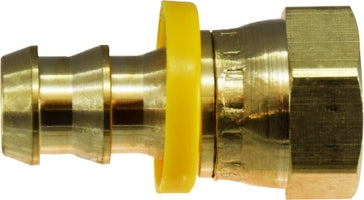

30234 by Midland | Push On Hose Barb Fitting | SAE/JIC Dual 45°/37° Female Swivel | 3/4-16 UNF Thread | 1/2" Hose ID x 1/2" Dual Seat | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Push On Barb Fitting - SAE/JIC Dual 45°/37° Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.89 |
| 40–79 | $5.33 |
| 80+ | $4.70 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 29PO5 | 129PO10 | 29FDS | 287 | HDF | 309 | 735 | 690 | P990-K | 305 | 935/934 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose ID x Dual Seat | UNF Thread | A | B | Hex | Approx. Weight (Lbs.) |
| 30230 (30-230) |
1/4" x 1/4" | 7/16-20 | 1.53" | 0.87" | 0.56" | 0.06 |
| 30231 (30-231) |
1/4" x 5/16" | 1/2-20 | 1.53" | 0.87" | 0.62" | 0.04 |
| 30232 (30-232) |
5/16" x 5/16" | 1/2-20 | 1.56" | 0.87" | 0.62" | 0.04 |
| 30427 (30-427) |
3/8" x 5/16" | 1/2-20 | 1.74" | 0.87" | 0.62" | 0.06 |
| 30233 (30-233) |
3/8" x 1/2" | 3/4-16 | 1.79" | 0.97" | 0.87" | 0.10 |
| 30234 (30-234) |
1/2" x 1/2" | 3/4-16 | 1.77" | 0.97" | 0.87" | 0.10 |
| 30235 (30-235) |
1/2" x 5/8" | 7/8-14 | 1.84" | 0.97" | 1.00" | 0.12 |
| 30236 (30-236) |
5/8" x 1/2" | 3/4-16 | 2.27" | 1.45" | 0.87" | 0.18 |
| 30237 (30-237) |
5/8" x 5/8" | 7/8-14 | 2.33" | 1.45" | 1.00" | 0.14 |
| 30428 (30-428) |
3/4" x 5/8" | 7/8-14 | 2.33" | 1.45" | 1.00" | 0.20 |
