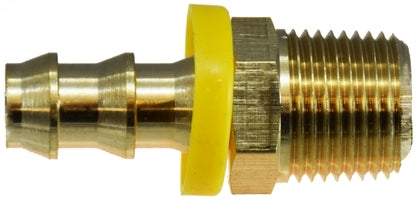

30219 by Midland | Push-On Fitting | 5/8" Hose ID x 3/8" Male NPTF | Adapter | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - Male Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.24 |
| 40–79 | $9.26 |
| 80+ | $8.17 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29PO1 | 129PO1 | 301 | P990A | HLM | 100B-1 | KA-MB | 272 | 29PO | 725 | 625 | BPN | 941 | 30182 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose ID x Male NPTF | A | B | Hex | Approx. Weight (Lbs.) |
| 30200 (30-200) |
1/4" x 1/8" | 1.43" | 0.87" | 0.50" | 0.04 |
| 30201 (30-201) |
1/4" x 1/4" | 1.66" | 0.87" | 0.56" | 0.06 |
| 30211 (30-211) |
1/4" x 3/8" | 1.66" | 0.87" | 0.68" | 0.06 |
| 30208 | 1/4" x 1/2" | 1.83" | 0.88" | 0.88" | 0.10 |
| 30212 (30-212) |
5/16" x 1/8" | 1.42" | 0.77" | 0.43" | 0.04 |
| 30213 (30-213) |
5/16" x 1/4" | 1.66" | 0.87" | 0.56" | 0.06 |
| 30202 (30-202) |
3/8" x 1/8" | 1.53" | 0.97" | 0.50" | 0.04 |
| 30203 (30-203) |
3/8" x 1/4" | 1.69" | 0.89" | 0.56" | 0.07 |
| 30204 (30-204) |
3/8" x 3/8" | 1.76" | 0.97" | 0.68" | 0.08 |
| 30205 (30-205) |
3/8" x 1/2" | 1.97" | 0.97" | 0.87" | 0.10 |
| 30392 (30-392) |
3/8" x 3/4" | 1.97" | 0.92" | 1.06" | 0.16 |
| 30216 (30-216) |
1/2" x 1/4" | 1.76" | 0.97" | 0.68" | 0.08 |
| 30206 (30-206) |
1/2" x 3/8" | 1.76" | 0.97" | 0.68" | 0.09 |
| 30207 (30-207) |
1/2" x 1/2" | 1.97" | 0.97" | 0.87" | 0.14 |
| 30217 (30-217) |
1/2" x 3/4" | 1.97" | 0.97" | 1.06" | 0.16 |
| 30218 | 1/2" x 1" | 2.29" | 0.97" | 1.37" | 0.34 |
| 30219 (30-219) |
5/8" x 3/8" | 2.34" | 1.50" | 0.75" | 0.12 |
| 30209 (30-209) |
5/8" x 1/2" | 2.45" | 1.45" | 0.87" | 0.16 |
| 30214 (30-214) |
5/8" x 3/4" | 2.45" | 1.45" | 1.06" | 0.18 |
| 30215 (30-215) |
3/4" x 1/2" | 2.45" | 1.45" | 0.87" | 0.21 |
| 30210 (30-210) |
3/4" x 3/4" | 2.45" | 1.45" | 1.06" | 0.20 |
| 30238 (30-238) |
1" x 3/4" | 2.93" | 1.50" | 1.25" | 0.43 |
| 30239 (30-239) |
1" x 1" | 3.11" | 1.50" | 1.37" | 0.49 |
