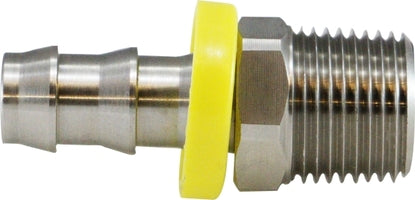

30210SS by Midland | Push On Hose Barb | 3/4" Hose ID x 3/4" Male NPT | Adapter | 316 Stainless Steel
Midland Industries
Brass Fitting - Push On Barb Fitting - Male Adapter
316 Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $42.17 |
| 40–79 | $38.13 |
| 80+ | $33.65 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | N/A |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose ID x Male NPT | A | B | Hex | Approx. Weight (Lbs.) |
| 30200SS (30-200SS) |
1/4" x 1/8" | 1.42" | 0.77" | 0.44" | 0.027 |
| 30201SS (30-201SS) |
1/4" x 1/4" | 1.61" | 0.77" | 0.56" | 0.043 |
| 30203SS (30-203SS) |
3/8" x 1/4" | 1.76" | 0.92" | 0.56" | 0.053 |
| 30204SS (30-204SS) |
3/8" x 3/8" | 1.76" | 0.92" | 0.69" | 0.067 |
| 30206SS (30-206SS) |
1/2" x 3/8" | 1.86" | 1.02" | 0.69" | 0.071 |
| 30207SS (30-207SS) |
1/2" x 1/2" | 2.07" | 1.02" | 0.88" | 0.119 |
| 30215SS (30-215SS) |
3/4" x 1/2" | 2.55" | 1.50" | 0.88" | 0.200 |
| 30210SS (30-210SS) |
3/4" x 3/4" | 2.55" | 1.50" | 1.06" | 0.194 |
