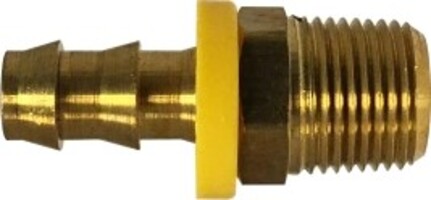

30206LF (30-206LF) by Midland | Lead Free Push-On Fitting | Male Adapter | 1/2" Hose ID x 3/8" Male NPTF | Straight | Brass

30206LF (30-206LF) by Midland | Lead Free Push-On Fitting | Male Adapter | 1/2" Hose ID x 3/8" Male NPTF | Straight | Brass

Minimum Order Quantity: 5 Units

Sale price$3.63

Midland Industries
Lead Free Brass Fitting - Push-On Fitting - Male Adapter
Buy More, Save More!
Quantity Price Each
20–39 $3.41
40–79 $3.09
80+ $2.72
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 3/8in Male NPTF
Material(s):
  • Lead Free Brass
Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Conformance: Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)

Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Part Number Hose ID x Male NPTF
30200LF
(30-200LF) 		1/4" x 1/8"
30203LF
(30-203LF)		 3/8" x 1/4"
30204LF
(30-204LF)		 3/8" x 3/8"
30206LF
(30-206LF)		 1/2" x 3/8"
30207LF
(30-207LF)		 1/2" x 1/2"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
