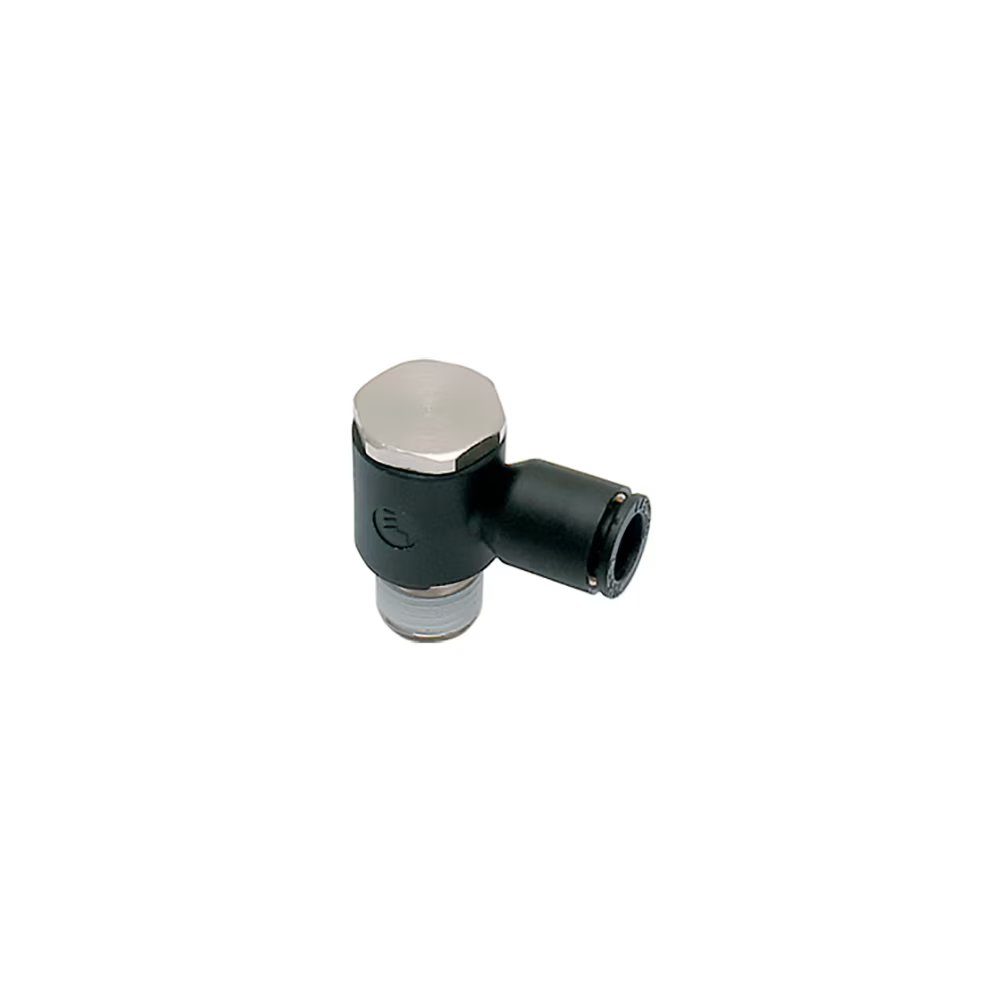

3018 10 13 by Parker | Legris Banjo Fittings | 10 mm Tube Size x 1/4" Male BSPT Thread | 38.50 mm Length | Banjo | Polymer | Pack of 10

3018 10 13 by Parker | Legris Banjo Fittings | 10 mm Tube Size x 1/4" Male BSPT Thread | 38.50 mm Length | Banjo | Polymer | Pack of 10

Sale price$174.58

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3018 Single Banjo, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $164.11
20–59 $148.39
60+ $130.94
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3018 Series
Shape:

90 Degree

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/4in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C F G H L L1 Kg
3018 06 10 6 mm 1/8" 13 mm 10.5 mm 18.5 mm 20 mm 7 mm .015 Kg
3018 06 13 6 mm 1/4" 17 mm 10.5 mm 22.5 mm 22 mm 9.5 mm .029 Kg
3018 08 10 8 mm 1/8" 13 mm 13.5 mm 18.5 mm 25 mm 7 mm .016 Kg
3018 08 13 8 mm 1/4" 17 mm 13.5 mm 22.5 mm 27 mm 9.5 mm .030 Kg
3018 10 13 10 mm 1/4" 17 mm 16 mm 22.5 mm 29 mm 9.5 mm .031 Kg
3018 10 17 10 mm 3/8" 21 mm 16 mm 26.5 mm 31 mm 11 mm .048 Kg
3018 12 13 12 mm 1/4" 21 mm 19 mm 26.5 mm 34.5 mm 11 mm .052 Kg
3018 12 17 12 mm 3/8" 21 mm 19 mm 26.5 mm 34.5 mm 11 mm .050 Kg

Pre-coated thread
