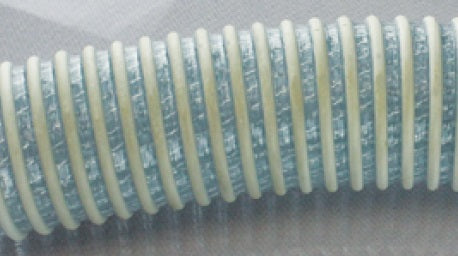

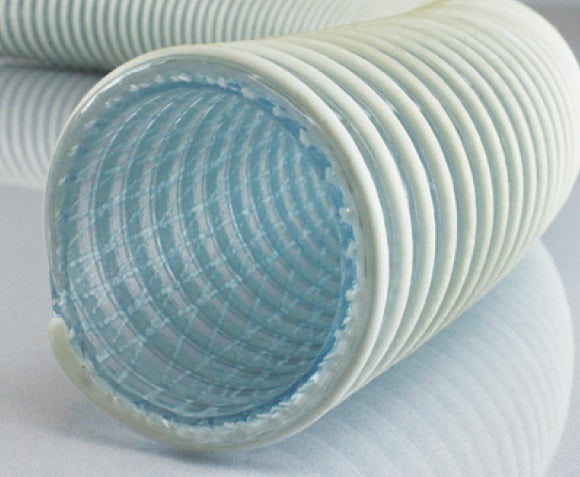

3012-0150-100 by Jason Industrial | 3012 Series | FDA 3-A Liquid Suction Hose | S-omega | 110 PSI | 1-1/2" ID | 2.03" OD | PVC | 100ft
3012-0150-100 by Jason Industrial | 3012 Series | FDA 3-A Liquid Suction Hose | S-omega | 110 PSI | 1-1/2" ID | 2.03" OD | PVC | 100ft

3012-0150-100 by Jason Industrial | 3012 Series | FDA 3-A Liquid Suction Hose | S-omega | 110 PSI | 1-1/2" ID | 2.03" OD | PVC | 100ft

Sale price$738.63

Jason Industrial Inc. Hose - Food Hose - 3012 PVC FDA 3-A Liquid Suction Hose - SΩ - Clear

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $694.31
15–29 $627.84
30+ $590.90
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: Food handling and heavy duty suction and discharge applications. Also for processing wine, beer, food paste, dairy and syrup. SAE Rating: N/A
Other Ratings: Meets FDA Requirements Approved by USDA Meets 3-A sanitary standards (which includes processing dairy products) Tube: PVC
Reinforcement: Non-toxic Food Grade PVC Clockwise Helix, One Synthetic Braid Cover: N/A
Temperature Range: -50 deg. F (-46 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow.
  • Easy to drag with "Go-Glide" external clockwise PVC helix.
  • Vacuum up to 29" of Hg
  • Safety Ohm (SΩ) embedded ground wire.
  • -50 deg. F cold weather resistant and still flexible
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3012-0150-100 1-1/2" 38.10mm 2.03" 51.56mm 1 110 PSI 7.58 BAR 29.0 inHg 0.47 lb./ft. 0.70 KG/m 2.50" 36.50mm 100ft
3012-0200-100 2" 50.80mm 2.60" 66.04mm 1 100 PSI 6.86 BAR 29.0 inHg 0.69 lb./ft. 1.02 KG/m 4.00" 101.60mm 100ft
3012-0300-100 3" 76.20mm 3.70" 93.98mm 1 100 PSI 6.89 BAR 28.0 inHg 1.13 lb./ft. 1.68 KG/m 6.00" 152.40mm 100ft
3012-0400-100 4" 101.60mm 4.78" 121.41mm 1 80 PSI 5.51 BAR 28.0 inHg 1.74 lb./ft. 2.58 KG/m 7.00" 177.80mm 100ft
3012-0500-100 5" 127.00mm 6.04" 153.42mm 1 70 PSI 4.83 BAR 28.0 inHg 2.99 lb./ft. 4.44 KG/m 9.00" 228.60mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 3012 Series
Color(s):
  • White/Off-White & Clear/Semi-Clear
Internal Diameter:
  • 1.50in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
