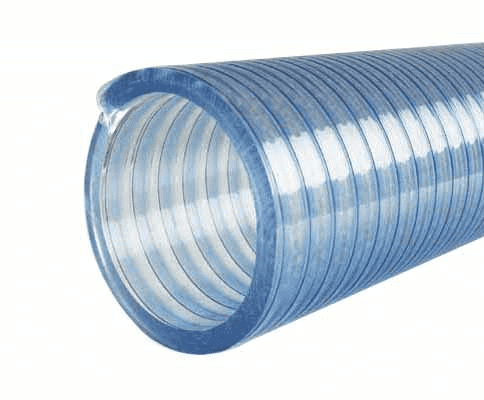

3010-0125-100 by Jason Industrial | 3010 Series | HD FDA USDA 3-A Liquid Food Suction Hose | 64 PSI | 1-1/4" ID | 1.54" OD | Clear | PVC | 100ft

3010-0125-100 by Jason Industrial | 3010 Series | HD FDA USDA 3-A Liquid Food Suction Hose | 64 PSI | 1-1/4" ID | 1.54" OD | Clear | PVC | 100ft

Sale price$282.61

Jason Industrial Inc. Hose - Food Hose - 3010 HD PVC FDA USDA 3-A Liquid Food Suction Hose - Clear

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $265.65
15–29 $240.22
30+ $211.96
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3010 Series
Color(s):
  • Clear/Semi-Clear
Internal Diameter:
  • 1.25in

SPECIFICATIONS

Application: Transfer of food grade liquids, such as juices, wine, beer and potable water and dairy products. SAE Rating: N/A
Other Ratings: Meets FDA Requirements Approved by USDA for use in Meat & Poultry Plants Meets 3-A sanitary standards (which includes processing dairy products) Tube: PVC
Reinforcement: Clockwise PVC Helix Cover: N/A
Temperature Range: -5 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow.
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3010-0100-100 1" 25.40mm 1.24" 31.50mm PVC Helix 71 PSI 4.90 BAR 29.9 inHg 0.26 lb./ft. 0.39 KG/m 3.00" 76.20mm 100ft
3010-0125-100 1-1/4" 31.75mm 1.54" 39.12mm PVC Helix 64 PSI 4.41 BAR 29.9 inHg 0.34 lb./ft. 0.51 KG/m 4.00" 101.60mm 100ft
3010-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 0.44 lb./ft. 0.65 KG/m 6.00" 152.40mm 100ft
3010-0200-100 2" 50.80mm 2.39" 60.71mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 0.74 lb./ft. 1.10 KG/m 8.00" 203.20mm 100ft
3010-0250-100 2-1/2" 63.50mm 2.93" 74.42mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 1.01 lb./ft. 1.50 KG/m 10.00" 254.00mm 100ft
3010-0300-100 3" 76.20mm 3.43" 87.12mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 1.21 lb./ft. 1.80 KG/m 12.00" 304.80mm 100ft
3010-0400-100 4" 101.60mm 4.53" 115.06mm PVC Helix 43 PSI 2.97 BAR 29.9 inHg 2.02 lb./ft. 3.01 KG/m 15.00" 381.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
