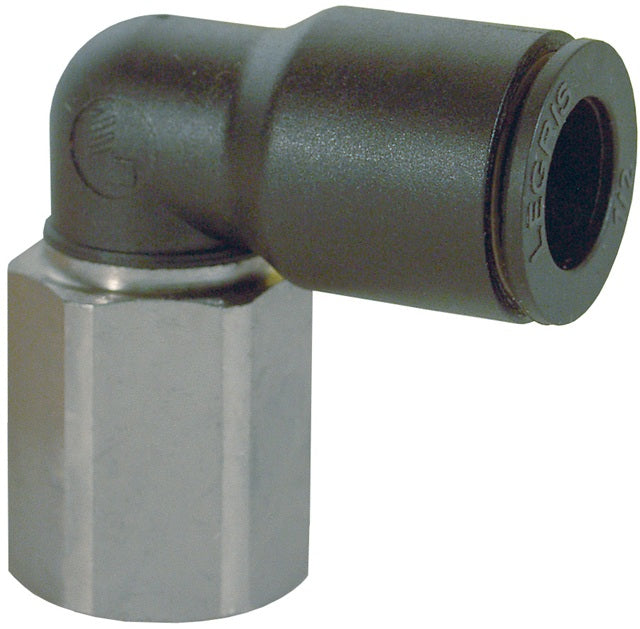

30095611 by Dixon Valve | Legris Push-In Fitting | Female Connector | 90° Elbow | 1/4" Tube OD x 1/8" Female NPT | Nylon / Nickel-Plated Brass

30095611 by Dixon Valve | Legris Push-In Fitting | Female Connector | 90° Elbow | 1/4" Tube OD x 1/8" Female NPT | Nylon / Nickel-Plated Brass

Sale price$10.95
Buy more, save moreDiscounts applied in cart/checkout.
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant on all tapered male pipe threads.
Construction:
  • Nickel-plated brass threads.
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Specifications:
  • Working pressure: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Female NPT
30095311 1/8" 1/8"
30090414 5/32" 1/4"
30095611 1/4" 1/8"
30095614 1/4" 1/4"
30090811 5/16" 1/8"
30090814 5/16" 1/4"
30096014 3/8" 1/4"
30096218 1/2" 3/8"

Additional Product Data:

Brand:
  • Legris
Shape:

90 Degree

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/8in Female NPT
