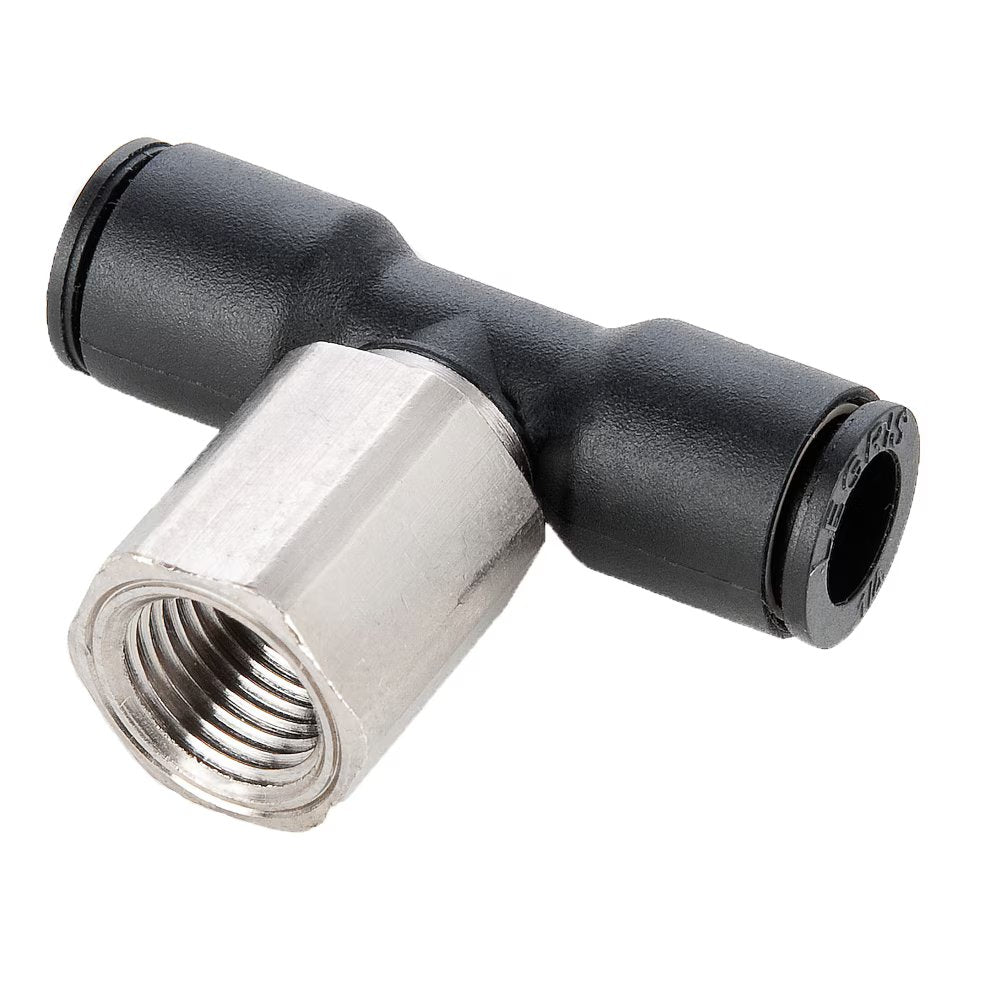

3008 04 14 by Parker | LF3000® Push-to-Connect Fittings | 5/32" Push-to-Connect x 1/4" Female NPT Thread | 16 mm Hex | 1.10" Length | Tee | Nylon | Pack of 10
by Parker Hannifin
LF3000® Push-to-Connect Fittings:3008 - female branch tee fractional inch tube to NPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $92.04 |
| 20–59 | $83.22 |
| 60+ | $73.43 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range |
|
| Temperature Range |
|
| Vacuum Capability |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | NPT (C) | F | G | H | E | L | Oz |
| 3008 53 11 | 1/8" | 1/8" | 13 mm | .34" | .99" | .37" | .57" | 1.02 Oz |
| 3008 04 11 | 5/32" | 1/8" | 13 mm | .33" | .91" | .37" | .55" | .43 Oz |
| 3008 04 14 | 5/32" | 1/4" | 16 mm | .33" | 1.08" | .55" | .55" | .74 Oz |
| 3008 56 11 | 1/4" | 1/8" | 13 mm | .43" | 1.02" | .37" | .71" | .55 Oz |
| 3008 56 14 | 1/4" | 1/4" | 16 mm | .43" | 1.18" | .55" | .71" | .84 Oz |
| 3008 08 11 | 5/16" | 1/8" | 13 mm | .53" | 1.24" | .37" | .91" | .66 Oz |
| 3008 08 14 | 5/16" | 1/4" | 16 mm | .53" | 1.40" | .55" | .91" | 1.01 Oz |
| 3008 60 14 | 3/8" | 1/4" | 16 mm | .63" | 1.60" | .55" | 1.04" | 1.13 Oz |
| 3008 62 18 | 1/2" | 3/8" | 22 mm | .87" | 1.88" | .65" | 1.38" | 2.94 Oz |
