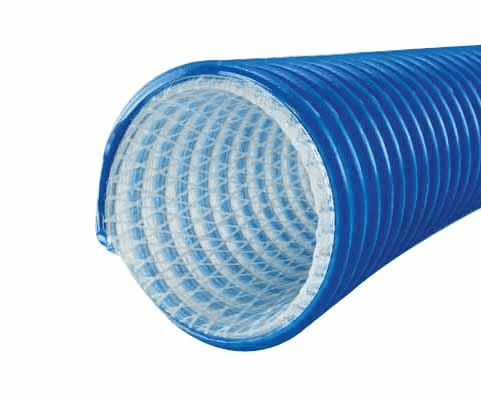

3000-0600-100 by Jason Industrial | 3000 Series | FDA USDA Material Handling Hose | S-omega | 40 PSI | 6" ID | 6.92" OD | Blue/Clear | Polyurethane | 100ft
Jason Industrial Inc

3000-0600-100 by Jason Industrial | 3000 Series | FDA USDA Material Handling Hose | S-omega | 40 PSI | 6" ID | 6.92" OD | Blue/Clear | Polyurethane | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Heavy duty food grade material handling, railcar unloading, abrasive suction and transfer. SAE Rating: N/A
Other Ratings: Meets FDA Requirements Approved by USDA for use in Meat & Poultry Plants Tube: Polyurethane
Reinforcement: High Tensile Strength Polyester Yarn Cover: Clockwise PVC Helix with SΩ Ground Wire
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • SΩ = Safety OHM
  • Clear visual flow and higher transfer pressures
  • Safety Ohm (SΩ) ground wire embedded into the hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity.
  • -40 deg. F cold weather resistance with sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3000-0300-100 3" 76.20mm 3.80" 96.52mm 1 70 PSI 4.83 BAR 29.0 inHg 1.20 lb./ft. 1.79 KG/m 4.00" 101.60mm 100ft
3000-0400-100 4" 101.60mm 4.85" 123.19mm 1 65 PSI 4.48 BAR 29.0 inHg 1.60 lb./ft. 2.38 KG/m 6.00" 152.40mm 100ft
3000-0500-020 5" 127.00mm 5.80" 147.32mm 1 45 PSI 3.10 BAR 29.0 inHg 2.46 lb./ft. 3.66 KG/m 10.00" 254.00mm 20ft
3000-0500-050 5" 127.00mm 5.80" 147.32mm 1 45 PSI 3.10 BAR 29.0 inHg 2.46 lb./ft. 3.66 KG/m 10.00" 254.00mm 50ft
3000-0500-100 5" 127.00mm 5.80" 147.32mm 1 45 PSI 3.10 BAR 29.0 inHg 2.46 lb./ft. 3.66 KG/m 10.00" 254.00mm 100ft
3000-0600-050 6" 152.40mm 6.92" 175.77mm 1 40 PSI 2.76 BAR 29.0 inHg 2.86 lb./ft. 4.26 KG/m 12.00" 304.80mm 50ft
3000-0600-100 6" 152.40mm 6.92" 175.77mm 1 40 PSI 2.76 BAR 29.0 inHg 2.86 lb./ft. 4.26 KG/m 12.00" 304.80mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
