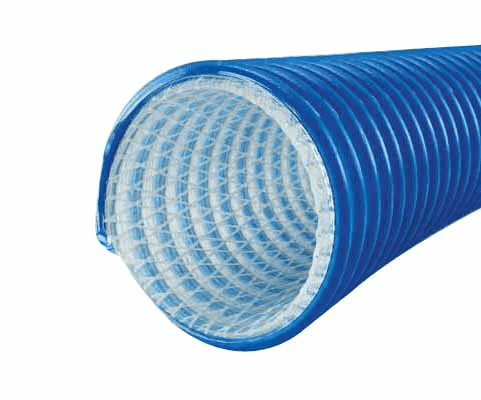

3000-0500-020 by Jason Industrial | 3000 Series | FDA USDA Material Handling Hose | S-omega | 45 PSI | 5" ID | 5.80" OD | Blue/Clear | Polyurethane | 20ft

3000-0500-020 by Jason Industrial | 3000 Series | FDA USDA Material Handling Hose | S-omega | 45 PSI | 5" ID | 5.80" OD | Blue/Clear | Polyurethane | 20ft

Sale price$888.15

Jason Industrial Inc. Hose - Food Hose - 3000 Polyurethane FDA USDA Material Handling Hose - SΩ - Blue/Clear

Package Quantity: 20 FT

Buy More, Save More!
Quantity Price Each
5–14 $834.86
15–29 $754.93
30+ $710.52
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: Heavy duty food grade material handling, railcar unloading, abrasive suction and transfer. SAE Rating: N/A
Other Ratings: Meets FDA Requirements Approved by USDA for use in Meat & Poultry Plants Tube: Polyurethane
Reinforcement: High Tensile Strength Polyester Yarn Cover: Clockwise PVC Helix with SΩ Ground Wire
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • SΩ = Safety OHM
  • Clear visual flow and higher transfer pressures
  • Safety Ohm (SΩ) ground wire embedded into the hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity.
  • -40 deg. F cold weather resistance with sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3000-0300-100 3" 76.20mm 3.80" 96.52mm 1 70 PSI 4.83 BAR 29.0 inHg 1.20 lb./ft. 1.79 KG/m 4.00" 101.60mm 100ft
3000-0400-100 4" 101.60mm 4.85" 123.19mm 1 65 PSI 4.48 BAR 29.0 inHg 1.60 lb./ft. 2.38 KG/m 6.00" 152.40mm 100ft
3000-0500-020 5" 127.00mm 5.80" 147.32mm 1 45 PSI 3.10 BAR 29.0 inHg 2.46 lb./ft. 3.66 KG/m 10.00" 254.00mm 20ft
3000-0500-050 5" 127.00mm 5.80" 147.32mm 1 45 PSI 3.10 BAR 29.0 inHg 2.46 lb./ft. 3.66 KG/m 10.00" 254.00mm 50ft
3000-0500-100 5" 127.00mm 5.80" 147.32mm 1 45 PSI 3.10 BAR 29.0 inHg 2.46 lb./ft. 3.66 KG/m 10.00" 254.00mm 100ft
3000-0600-050 6" 152.40mm 6.92" 175.77mm 1 40 PSI 2.76 BAR 29.0 inHg 2.86 lb./ft. 4.26 KG/m 12.00" 304.80mm 50ft
3000-0600-100 6" 152.40mm 6.92" 175.77mm 1 40 PSI 2.76 BAR 29.0 inHg 2.86 lb./ft. 4.26 KG/m 12.00" 304.80mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 3000 Series
Color(s):
  • Blue
Internal Diameter:
  • 5in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
