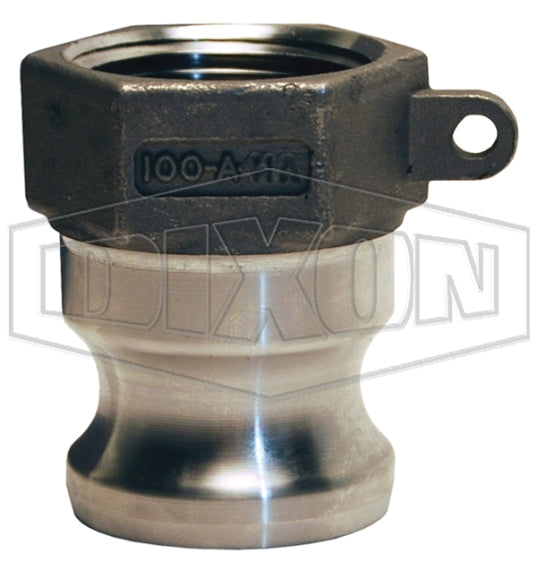

300-A-HA by Dixon Valve | Cam & Groove Adapter | Type A | 3" Adapter x 3" Female NPT | Hastelloy®

300-A-HA by Dixon Valve | Cam & Groove Adapter | Type A | 3" Adapter x 3" Female NPT | Hastelloy®

Sale price$660.13

Dixon Valve
Cam & Groove Fitting | Type A | Adapter x Female NPT | Hastelloy®

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $620.52
15–29 $561.11
30+ $495.10
Discounts applied in cart/checkout.

Product Data:

MAWP:

125

Shape:

Straight

Cam & Groove Type:

Type A
Features:
  • Precision machined to rigid tolerances.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Hastelloy® CW12MW
Part Number		 Size Max. Operating Pressure
100-A-HA 1" 250 PSI
150-A-HA 1-1/2" 250 PSI
200-A-HA 2" 250 PSI
300-A-HA 3" 125 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
