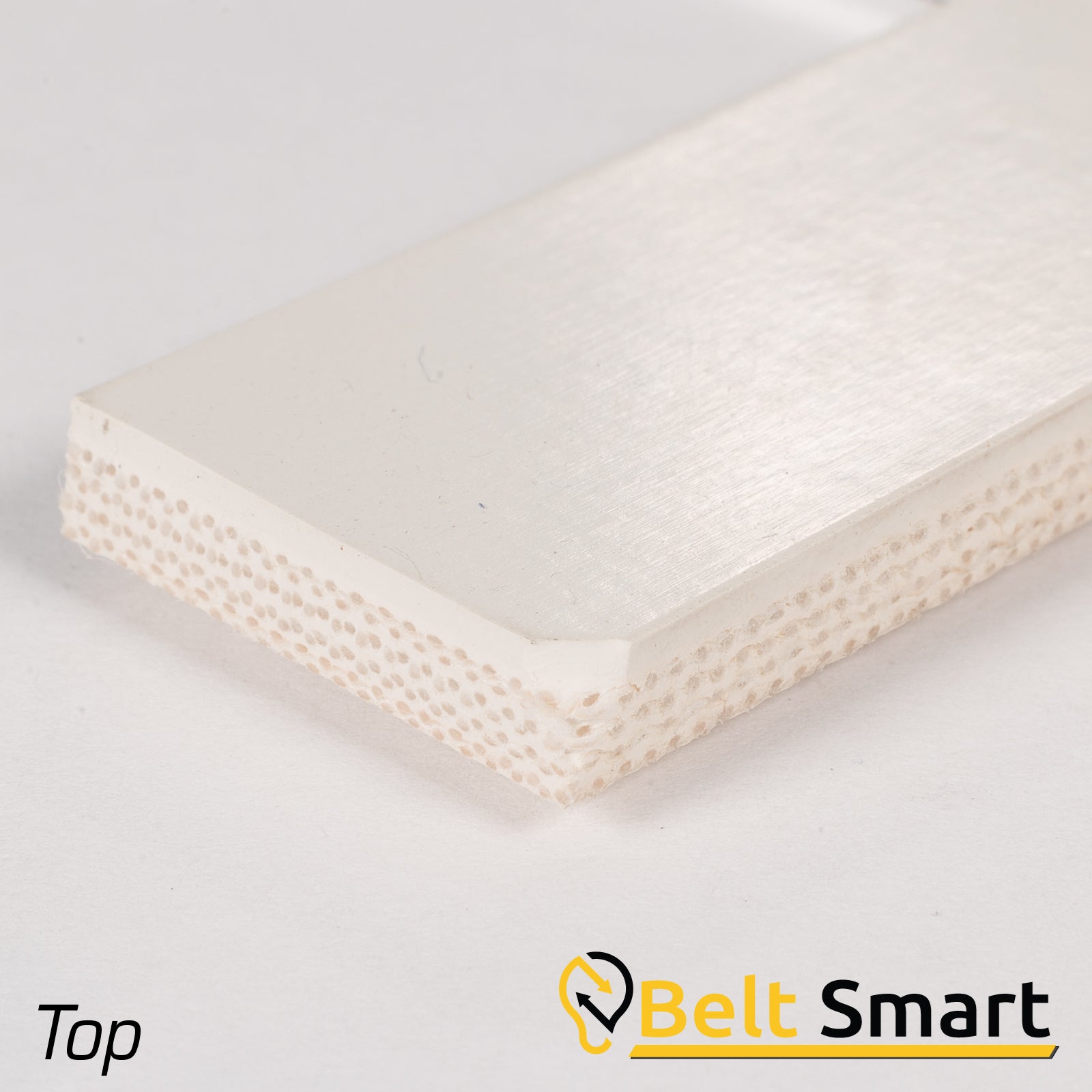

BS003 - #3 Beltservice 4 Ply 15 oz. White Nitrile COS Conveyor Belt
Beltservice

BS003 - #3 Beltservice 4 Ply 15 oz. White Nitrile COS Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • General-purpose food handling
  • Assembly line and packaging belts
Features:
  • Greaseproof
  • Can be hot water and steam cleaned
  • Resistant to food acids, fats and alkalies
  • Nitrile compound is also known as Buna-N and Hycar
  • Easy-to-clean
  • Smooth 3/64" cover
  • Construction features tightly woven blend of cotton and polyester plies impregnated and covered with nitrile.
Specifications:
  • FDA accepted
2 Ply 15 oz.
White Nitrile
COS
Pt No.: 1		 3 Ply 15 oz.
White Nitrile
COS
Pt No.: 2		 4 Ply 15 oz.
White Nitrile
COS
Pt No.: 3		 5 Ply 15 oz.
White Nitrile
COS
Pt No.: 4
Thickness 3/32" 1/8" 5/32" 3/16"
Covers 3/64" x FS
Carcass 15oz Cotton - Polyester Blend
Working Tension
per inch Width		 35 lbs. 52 lbs. 64 lbs. 80 lbs.
Approx. Weight
lbs per inch Width		 .059 lbs. .077 lbs. .096 lbs. .113 lbs.
Min. Pulley Diameter 2" 2-1/2" 3" 4"
Temperature Range 0 deg. F / 250 deg. F
Clipper Lace #1A #1 #2 #4
Alligator Lace #7 #15 #20 #25
