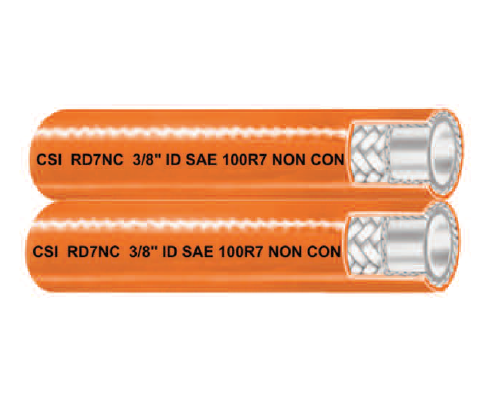

3/8" RD7TLNC by Couplamatic | Non-Conductive Twin Line Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 3/8" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R7 — Reduced OD, Twin Line, Non-Conductive
RD7TLNC Non-Conductive Twin Line Thermoplastic Hydraulic Hose
Reduced outside diameter twin line SAE 100R7 hose with a non-conductive orange cover meeting ANSI 92.2 — built for aerial lift boom circuits.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R7
Cover
Orange Non-Conductive Polyurethane, ANSI 92.2, Non-Perforated
Tube
Nylon
Reinforcement
Polyester Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/4" to 3/8"
3
What are the main product features?
- Meets ANSI 92.2 — the aerial work platform standard for non-conductive hose.
- Non-conductive cover — orange polyurethane, non-perforated.
- Bonded twin line — supply and return run together and stay paired on the boom.
- Reduced outside diameter — fits tighter boom routing than standard 100R7.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" RD7TLNC | 1/4" | 0.455" | 2,750 lbs. | 11,000 lbs. | 1.5" | 10 lbs. | 250ft |
| 3/8" RD7TLNC | 3/8" | 0.618" | 2,250 lbs. | 9,000 lbs. | 2" | 21 lbs. | 250ft |
Cut lengths are available in multiples of 50'. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2250
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
