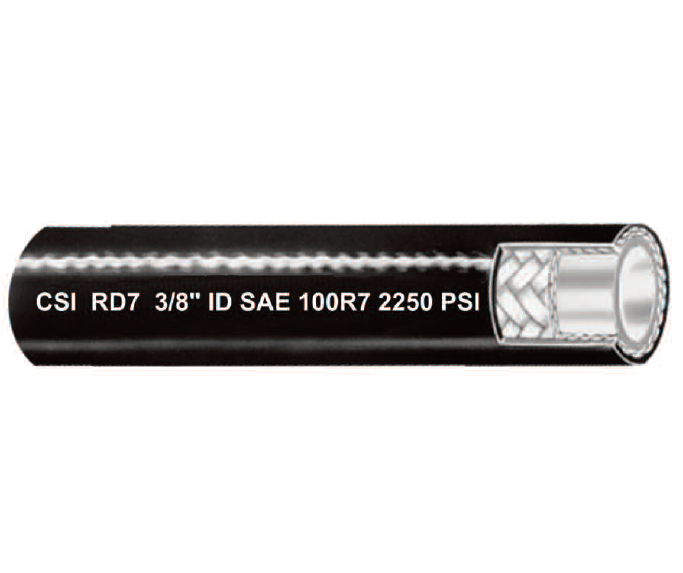

3/8" RD7 by Couplamatic | Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 3/8" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R7 — Reduced OD
RD7 Reduced OD Thermoplastic Hydraulic Hose
Reduced outside diameter SAE 100R7 thermoplastic hose — the same medium pressure ratings as standard 100R7 in a smaller envelope.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R7
Cover
Black Polyurethane, Perforated
Tube
Nylon
Reinforcement
Polyester Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/4" to 3/8"
3
What are the main product features?
- Reduced outside diameter — more hose fits through the same routing and clamps.
- Same working pressures as standard 100R7 — 2,750 PSI at 1/4", 2,250 PSI at 3/8".
- Nylon tube, polyester braid — lightweight medium pressure construction.
- Perforated black polyurethane cover — abrasion resistant and vented.
4
Which sizes are available?
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2250
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
