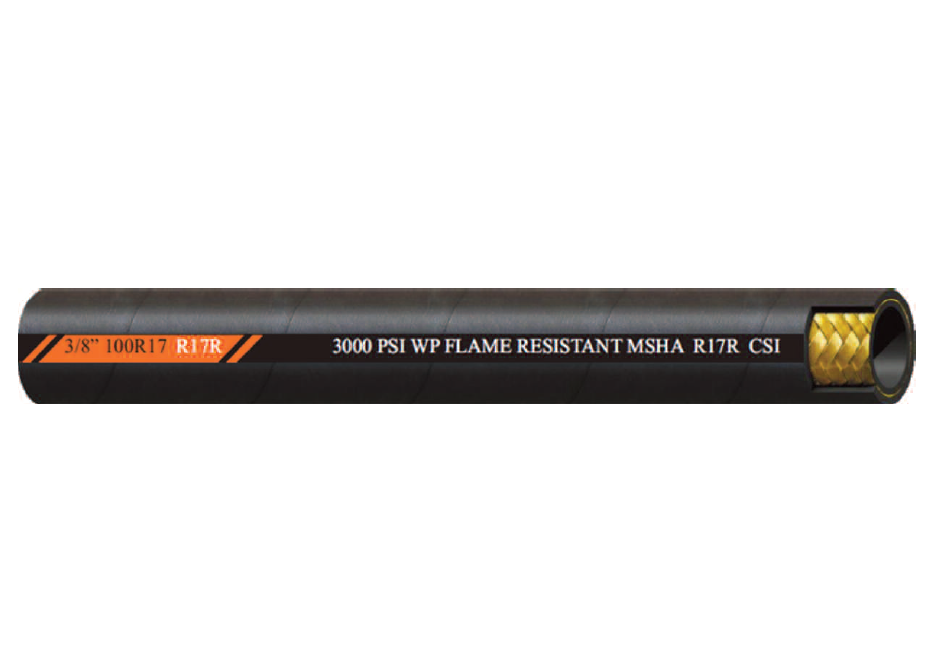

3/8" R17R by Couplamatic | Import 3000 PSI | One Wire Hydraulic Hose | SAE 100R17 | 1SN Dimension | 3/8" ID | 500ft
Package Quantity: 500 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R17 — 1SN Dimension
R17R Import 3000 PSI Constant Working Pressure Hydraulic Hose
Import SAE 100R17 hose built to 1SN outside diameters, holding a constant 3,000 PSI working pressure through 1/2".
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R17 (1SN DIMENSION)
Cover
Abrasion and Flame Resistant Cover, MSHA Approved
Reinforcement
One (1/4"-3/8") or Two (1/2") Wire Braids
Temperature
-40°F to +212°F (-40°C to +100°C)
3
What are the main product features?
- 3000 PSI constant working pressure — same rating across every size.
- 1SN dimensions — standard 1SN outside diameters for familiar fitting and clamp sizing.
- One or two wire braids — one wire in 1/4" and 3/8", two wire in 1/2".
- MSHA approved cover — abrasion and flame resistant.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" R17R | 1/4" | 0.530" | 3,000 lbs. | 12,000 lbs. | 2" | 16 lbs. | 500ft |
| 3/8" R17R | 3/8" | 0.687" | 3,000 lbs. | 12,000 lbs. | 3" | 23 lbs. | 500ft |
| 1/2" R17R | 1/2" | 0.812" | 3,000 lbs. | 12,000 lbs. | 3.5" | 31 lbs. | 350ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Specifications and Approvals:
Compatible Series:
