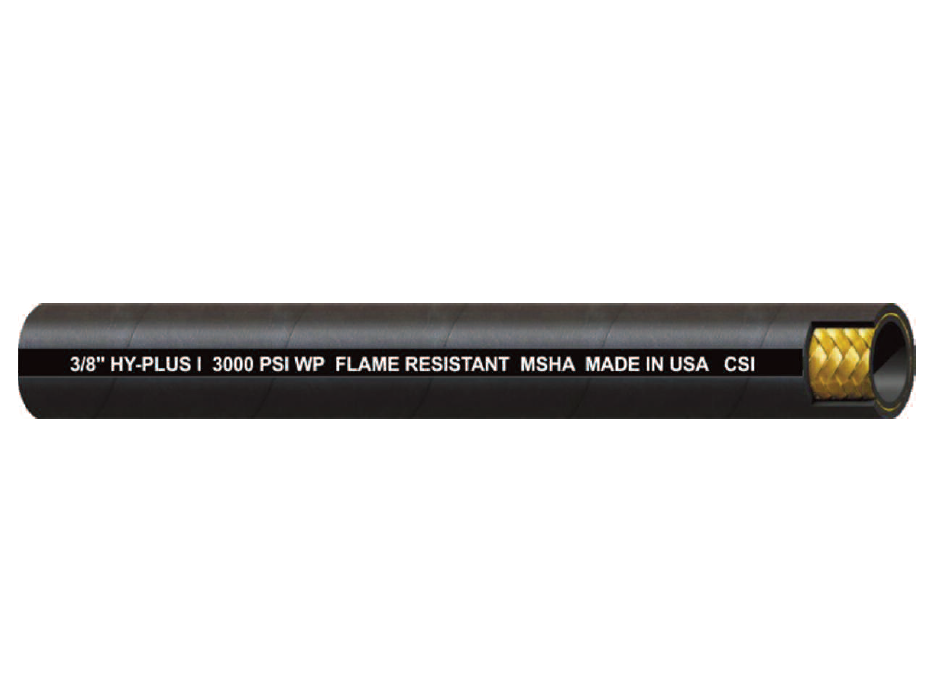

3/8" HPI by Couplamatic | Domestic HY-PLUS I One Wire Dimension Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R17 | 3/8" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R17 — 3000 PSI Constant
HPI Hy-Plus I One Wire Dimension Hi-Pressure Hydraulic Hose
Domestic SAE 100R17 hose holding 3,000 PSI constant working pressure across the size range in a one-wire outside diameter — one hose can replace two on the shelf.
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R17
Cover
Abrasion and Flame Resistant Cover, MSHA Approved
Reinforcement
One or Two Wire Braids
Temperature
-40°F to +212°F (-40°C to +100°C)
3
What are the main product features?
- 3000 PSI constant working pressure — can eliminate stocking two separate hoses.
- One wire dimension — one-wire outside diameters with higher pressure capability.
- Higher pressure and more flexible than 100R1 — a direct upgrade in most R1 applications.
- One or two wire braids — reinforcement varies by size.
- MSHA approved cover — abrasion and flame resistant.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" HPI | 1/4" | 0.535" | 3,000 lbs. | 12,000 lbs. | 2" | 16 lbs. | 250ft |
| 3/8" HPI | 3/8" | 0.690" | 3,000 lbs. | 12,000 lbs. | 2.5" | 23 lbs. | 250ft |
| 1/2" HPI | 1/2" | 0.813" | 3,000 lbs. | 12,000 lbs. | 3.5" | 29 lbs. | 250ft |
| 3/4" HPI | 3/4" | 1.100" | 3,000 lbs. | 12,000 lbs. | 5" | 55 lbs. | 250ft |
| 1" HPI | 1" | 1.410" | 3,000 lbs. | 12,000 lbs. | 6" | 82 lbs. | 250ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Specifications and Approvals:
Compatible Series:
