3/8" J1402A by Couplamatic | Type A Dot FMVSS 106 | Air Brake Hose | 4 Spiral Polyester | SAE J1402 | 3/8" ID | 500ft
Package Quantity: 500 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE J1402 Type A — DOT FMVSS 106

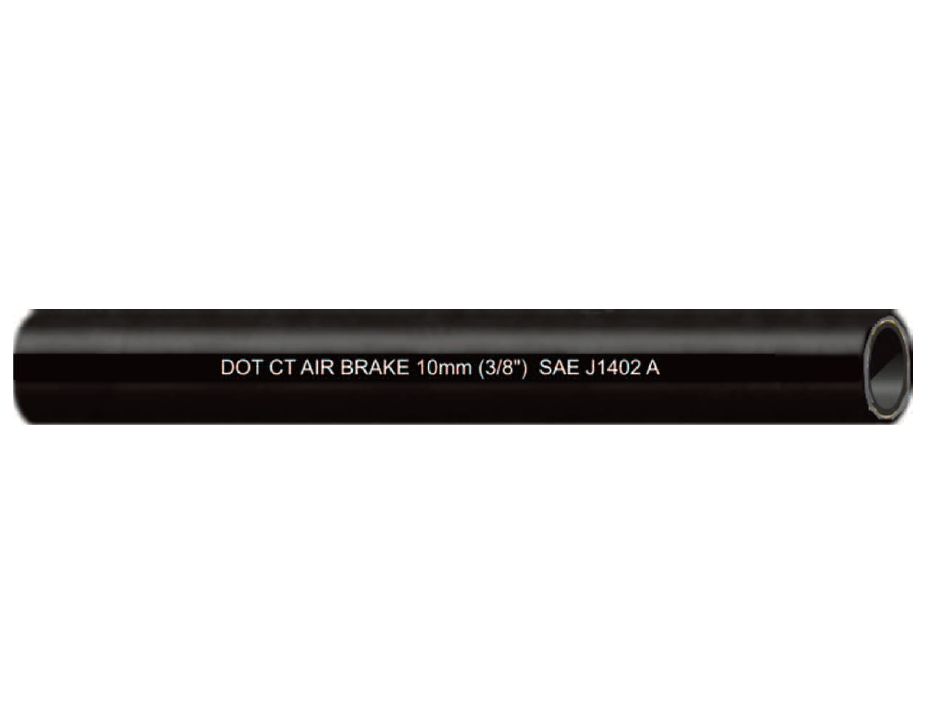

J1402A Type A Air Brake Hose
Four-spiral polyester reinforced air brake hose meeting SAE J1402 Type A and DOT FMVSS 106, for tractor and trailer air lines.
1
What is this hose used for?
- Air Brake
2
What are the key specifications?
SAE Rating
SAE J1402 TYPE A DOT FMVSS 106
Cover
Rubber
Reinforcement
4 Spiral Polyester
Temperature
-40 to +200°F (-40 to +96°C)
3
What are the main product features?
- SAE J1402 Type A — meets the air brake hose specification.
- DOT FMVSS 106 — compliant for on-highway air brake service.
- Four spiral polyester reinforcement — flexible and dimensionally stable.
- Cut lengths available — 100' minimum.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 3/8" J1402A | 3/8" | 0.750" | 225 lbs. | 900 lbs. | 3.5" | 20 lbs. | 500ft |
Cut lengths are available with a 100' minimum. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
225
Specifications and Approvals:
