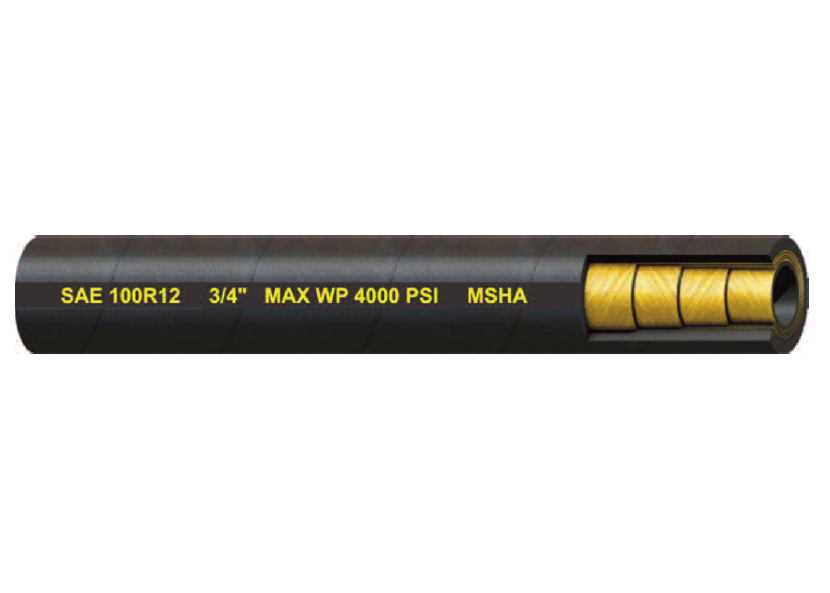

3/4" SP580 by Couplamatic | Four Spiral High Pressure Hydraulic Hose | Caterpillar | 4 Spirals | SAE 100R12 | 3/4" ID | 50ft
Couplamatic Systems Inc.
4 Spirals - SP580 Four Spiral High Pressure Hydraulic Hose (Caterpillar) - (SAE 100R12)
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $574.33 |
| 15–29 | $519.34 |
| 30+ | $458.24 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
4000
Specifications and Approvals:
Compatible Series:
| Applications: | High Pressure Hydraulics, Industrial or Agricultural | SAE Rating: | SAE 100R12 |
|---|---|---|---|
| Cover: | Abrasion and Flame Resistant Black Cover, MSHA approved | Reinforcement: | 4 Spirals |
| Temperature: | -40F to +250F (-40C to +121C) |
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/2" SP580 | 1/2" | 0.935" | 4,000 lbs. | 16,000 lbs. | 3.5" | 50 lbs. | 50ft |
| 3/4" SP580 | 3/4" | 1.210" | 4,000 lbs. | 16,000 lbs. | 4.75" | 81 lbs. | 50ft |
| 1" SP580 | 1" | 1.495" | 4,000 lbs. | 16,000 lbs. | 6" | 119 lbs. | 50ft |
| 1-1/4" SP580 | 1-1/4" | 1.850" | 3,000 lbs. | 12,000 lbs. | 8.25" | 155 lbs. | 50ft |
| 1-1/2" SP580 | 1-1/2" | 2.105" | 2,500 lbs. | 10,000 lbs. | 10" | 181 lbs. | 50ft |
| 2" SP580 | 2" | 2.626" | 2,500 lbs. | 10,000 lbs. | 12.5" | 256 lbs. | 50ft |
