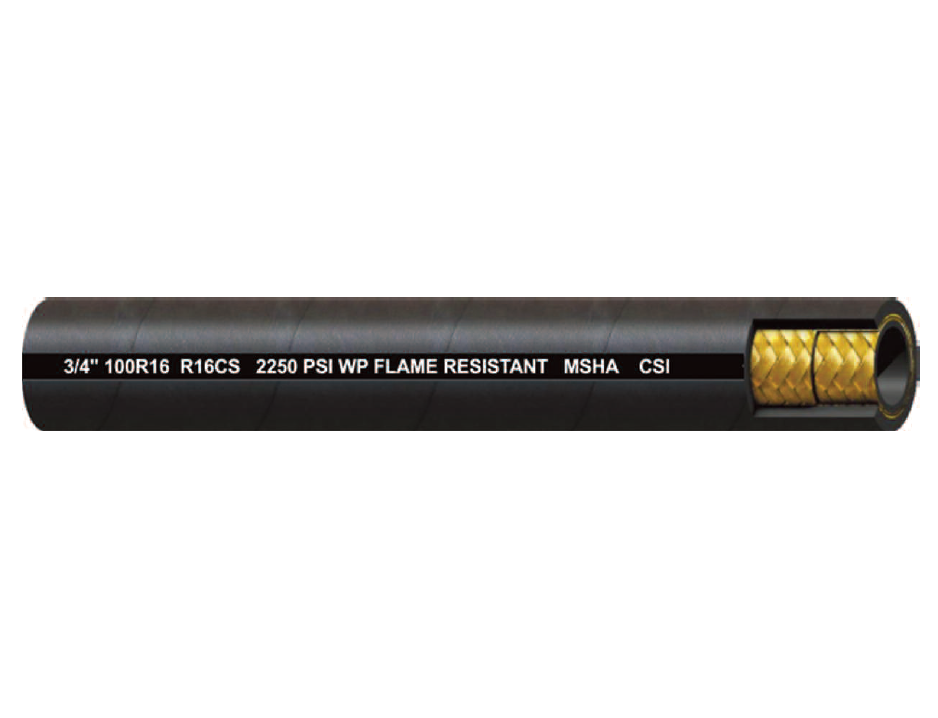

3/4" R16CS by Couplamatic | Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16 | 3/4" ID | 250ft

3/4" R16CS by Couplamatic | Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16 | 3/4" ID | 250ft

Sale price$1,048.38

Couplamatic Systems Inc.
Two Wire Braid Hoses - R16CS Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose - SAE 100R16

Package Quantity: 250 FT

Buy More, Save More!
Quantity Price Each
4–7 $985.48
8–14 $943.54
15+ $838.70
Discounts applied in cart/checkout.

Product Data:

Series:
  • R16CS Series
Color(s):
  • Black
Dash Size:
  • -12
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R16
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
3/4" R16CS 3/4" 1.090" 2,250 lbs. 9,000 lbs. 4.8" 54 lbs. 250ft
1 R16CS 1" 1.405" 2,000 lbs. 8,000 lbs. 6" 74 lbs. 200ft
See R16 Hose for sizes 1/4" thru 5/8".

**Crimps to 100R1AT One Wire Thin Cover Specifications - Tighter Bend Radius than R1 and R2*

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
