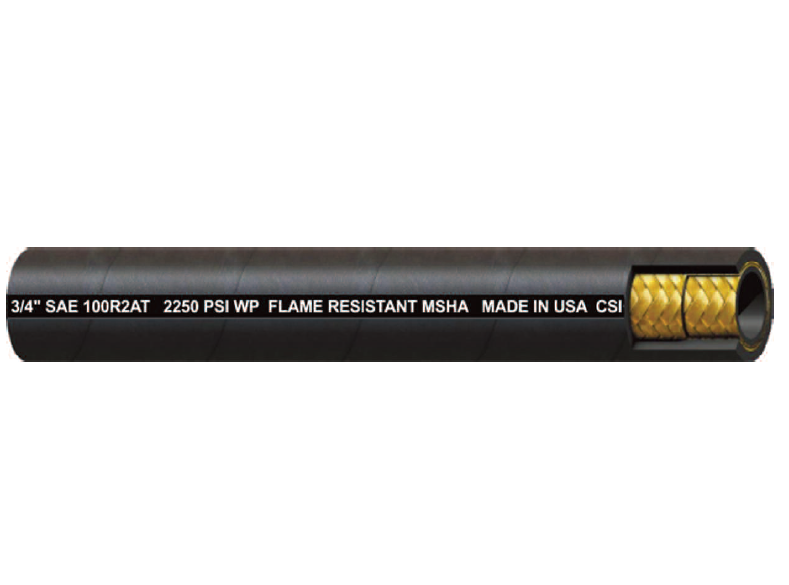

3/4" 57MB-2 by Couplamatic | Domestic Thin Cover | 2-Wire Hydraulic Hose | SAE 100R2AT | 3/4" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R2AT — Two Wire, Domestic
57MB-2 Domestic Thin Cover Two Wire Hydraulic Hose
Domestically produced two-wire SAE 100R2AT thin cover hose — the made-in-USA counterpart to the import 2SN, with an MSHA approved cover.
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R2AT
Cover
Abrasion and Flame Resistant Cover, MSHA Approved
Reinforcement
Two Wire Braids
Temperature
-40°F to +212°F (-40°C to +100°C)
3
What are the main product features?
- Domestically produced — made in the USA.
- Two wire braids — standard SAE 100R2AT high pressure service.
- Thin cover construction — compact outside diameters.
- MSHA approved cover — abrasion and flame resistant.
- Broad coupling compatibility — Vari-Crimp, A Series, GW Series (3/4"–1"), Grip Crimp and Reusable couplings all terminate this hose.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" 57MB-2 | 1/4" | 0.593" | 5,000 lbs. | 20,000 lbs. | 4" | 24 lbs. | 250ft |
| 3/8" 57MB-2 | 3/8" | 0.750" | 4,000 lbs. | 16,000 lbs. | 5" | 34 lbs. | 250ft |
| 1/2" 57MB-2 | 1/2" | 0.875" | 3,500 lbs. | 14,000 lbs. | 7" | 43 lbs. | 250ft |
| 5/8" 57MB-2 | 5/8" | 1.010" | 2,750 lbs. | 11,000 lbs. | 8" | 51 lbs. | 250ft |
| 3/4" 57MB-2 | 3/4" | 1.158" | 2,250 lbs. | 9,000 lbs. | 9.5" | 61 lbs. | 250ft |
| 1" 57MB-2 | 1" | 1.500" | 2,000 lbs. | 8,000 lbs. | 12" | 88 lbs. | 250ft |
Working pressures shown are for the hose only. Always match the hose to a compatible coupling series and follow the crimp specification for that combination. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2250
Specifications and Approvals:
Compatible Series:
