3/4" 2SN by Couplamatic | Import Thin Cover | 2-Wire Hydraulic Hose | SAE 100R2AT/2SN | 3/4" ID | 250ft
Couplamatic Systems Inc.

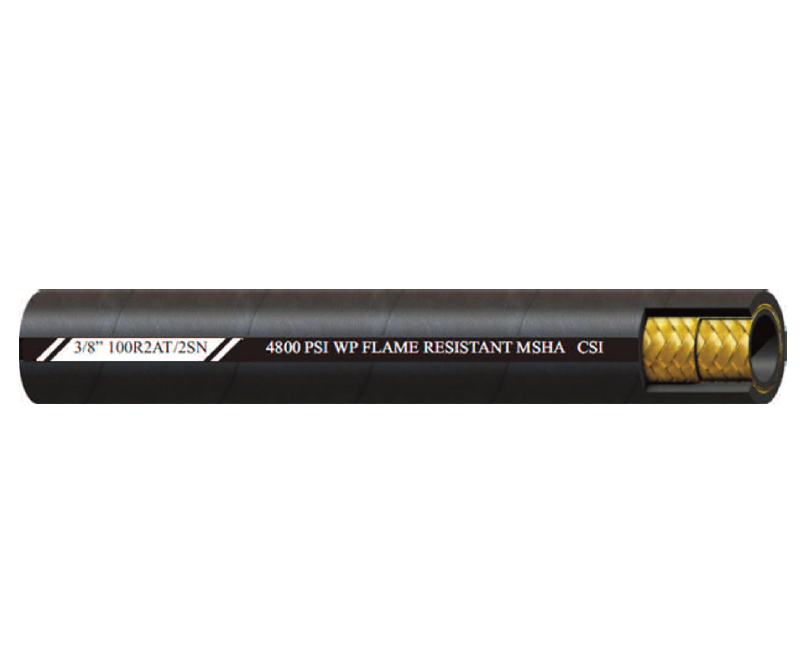

Two Wire Braid Hoses - 2SN Import Thin Cover 2-Wire Hydraulic Hose - SAE 100R2AT/2SN
Package Quantity: 250 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,111.61 |
| 8–14 | $1,064.30 |
| 15+ | $946.05 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3125
Specifications and Approvals:
Compatible Series:
| Applications: | High Pressure Hydraulics, Industrial or Agricultural | SAE Rating: | SAE 100R2AT/2SN |
|---|---|---|---|
| Cover: | Abrasion and Flame Resistant Cover, MSHA Approved | Reinforcement: | Two Wire Braids |
| Temperature: | -40F to +212F (-40C to +100C) |
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" 2SN | 1/4" | 0.593" | 5,800 lbs. | 23,200 lbs. | 4" | 24 lbs. | 500ft |
| 3/8" 2SN | 3/8" | 0.750" | 4,800 lbs. | 19,200 lbs. | 5" | 34 lbs. | 400ft |
| 1/2" 2SN | 1/2" | 0.875" | 4,000 lbs. | 16,000 lbs. | 7" | 43 lbs. | 300ft |
| 5/8" 2SN | 5/8" | 1.010" | 3,625 lbs. | 14,500 lbs. | 8" | 51 lbs. | 250ft |
| 3/4" 2SN | 3/4" | 1.158" | 3,125 lbs. | 12,500 lbs. | 9.5" | 61 lbs. | 250ft |
| 1" 2SN | 1" | 1.500" | 2,400 lbs. | 9,600 lbs. | 12" | 88 lbs. | 200ft |
| 1-1/4" 2SN | 1-1/4" | 1.862" | 1,800 lbs. | 7,200 lbs. | 16.5" | 129 lbs. | Bulk |
| 1-1/2" 2SN | 1-1/2" | 2.115" | 1,300 lbs. | 5,200 lbs. | 20" | 161 lbs. | Bulk |
| 2" 2SN | 2" | 2.625" | 1,150 lbs. | 4,600 lbs. | 25" | 198 lbs. | Bulk |
